Bluebell BN365R

Singlemode Single Channel 12G/SDI, 3G/SDI, HD/SDI Fibre Optic Receiver Module with Dual Outputs, Auto-Sensing for SDI, ASI, HD/SDI, 3G/SDI and 12G/SI. Fitted with LC connectors. […]

Opis produktu

BN365R Single Channel Electrical to Optical Transmitter 12G-SDI, 6G-SDI, 3G-SDI

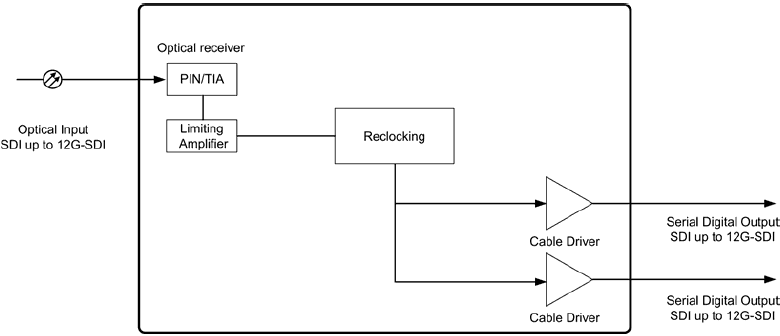

The BN365R is a receiver for the conversion of two independent optical signals into electrical 12G-SDI, 3G-SDI, HD-SDI, SD-SDI and ASI. The incoming optical signal is fed to a transimpedance and limiting amplifier before being electrically reclocked on the outputs. All Bluebell products are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport. Two serial digital signals are available on each output. Each BN365 is housed in a compact robust enclosure and is designed for Outside Broadcast and special events as well as Studios. Power is provided via the optional PS12 unit. The PS12 has an IEC mains inlet allowing easy adoption into standard equipment bays. The BN365 has a 4 pin XLR allowing power from a variety of external DC sources in the range 4.5 to 17 V. The BN365s are extremely compact single channel fibre optic converters that are perfectly suited to provide interference free transmission and for extending the range of electrical signals, particularly 12G-SDI signals.
Optical Input
Connector 1 x female LC as standard per channel See Ordering Information
Wavelength 1260-1620 nm
Sensitivity > -17 dBm @ 11.88 Gb/s > -18 dBm @ 5.94 Gb/s > -22 dBm @ 2.97 Gb/s
Max I/P power > -1 dBm
Data rate 50 Mb/s to 12 Gb/s
Electrical Output
Standards SMPTE 2082, SMPTE 2081. SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI, MADI at 125Mb/s Automatic rate selection for 12G-SDI, 3G-SDI, HD-SDI and SD-SDI data rates.
Connector 2 x 75 Ohm BNC per IEC 60169-8 Amendment 2
Polarity 2 x Non inverting
Signal Level 800 mV +/- 10%
DC Offset 0 +/- 0.5 V
Jitter <0.15 UI line equalised
Format Reclocked
General card specifications
Length: 92 mm
Width: 64 mm
Height: 30 mm Excluding connectors
Weight: 100 g
Operating Temp: -30 to +70 ºC
Power: 2.5 W
Voltage: 4.5 to 17 V dc
Signal detect LED on for loss of signal
Conformance
EMI/RFI: Complies with 89/336/EEC
Electrical: Complies with EN 61000-6-1, EN61000-6-2
Laser Safety Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11
RoHS: Complies with Directive 2002/95/EC
Warranty: 5 years
