Bluebell BN390T

Singlemode Quad Channel 3G/SDI Fibre Optic Demultiplexing Receiver Module, Auto-Sensing and reclocking for SDI, HD/SDI and 3G/SDI

Opis produktu

BN390 Deployable Optical Products for Outside Broadcast

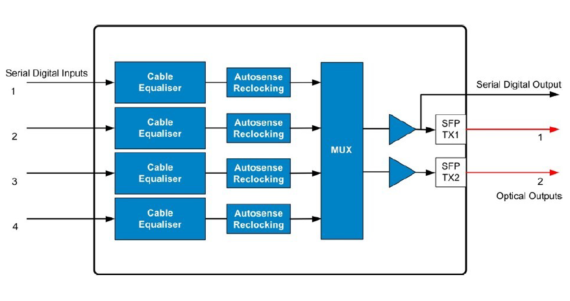

Expanding upon the successful BlueNano range the BN390 is designed for the cost effective transport of 4K UHD signals over fibre. Based around field proven technology the compact units provide the transport of 4 x 3G-SDI signals on a single Wavelength on a Single Fibre. The BN390 also provides a compact conversion unit which allows the outputs from up to four cameras to be transmitted over fibre. This unit multiplexese 4 x 3G-SDI onto one 12G-SDI Signal with Electrical and Optical Outputs. With an option for ITU Grid CWDM Wavelengths, up to 18 x 12G-SDI channels or indeed 72 x 3G-SDI channels can be transported on a single Singlemode fibre. Power is provided via the compact PS12 unit. Each BN390 has a 4 pin XLR allowing power from a variety of external DC sources in the range 4.5 to 17 V.
Electrical Input
Standards SMPTE 424M, SMPTE 292M SMPTE 297M
Equalisation Automatic to 100 m @ 3 Gb/s Automatic to 200 m @ 1.485 Gb/s
Connector 1 x 75 Ohm BNC to IEC 60169-8 Amendment 2 per channel
Return Loss > 15 dB @ 1.485 Gb/s
Format Reclocked
Optical Output
Connector Neutrik Opticalcon Dual
Wavelength 1270-1610 nm
Optical Power -3 dBm @ 1310 nm (typical)
Optical Input
Connector Neutrik Opticalcon Dual
Wavelength 1270-1610 nm
Sensitivity > -22 dBm @ 3 Gb/s (typical)
Max I/P power > -1 dBm
Electrical Output
Standards SMPTE 424M, SMPTE 292M, SMPTE 297M Automatic rate selection for 3G-SDI, HD-SDI data rates.
Connector 1 x 75 Ohm BNC to IEC 60169-8 Amendment 2 per channel
Return Loss > 15 dB @ 1.485 Gb/s
Signal Level 800 mV +/- 10%
DC Offset 0 +/- 0.5 V
Jitter <0.15 UI line equalised
Format Reclocked
General card specifications (excluding connectors)
Length 134 mm
Width: 109 mm
Height: 30 mm
Weight: 200 g
Operating Temp: -30 to +70 ºC
Power: 2.5 W
Voltage 4.5 to 17 V dc
EMI/RFI: Complies with 89/336/EEC, EN55022B, EN61000-4-2, EN61000-4-4-(Level 2), EN61000-4-4FTB, EN61000-4-5, EN61000-4-11
Electrical: Complies with EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
Laser Safety Dependent on SFP fitted. Complies with Class 1 laser product
RoHS: Complies with Directive 2002/95/EC
Warranty: 5 years
