Bluebell BC323T

Multimode Dual Channel 3G/SDI, HD/SDI Fibre Optic Transmitter Module, Auto-Sensing for SDI, ASI, HD/SDI and 3G/SDI. Fitted with LC connectors. Includes PS12 power supply.

Opis produktu

BC323T Dual Electrical to Optical Transmitter 3G-SDI, HD-SDI, SD-SDI, ASI

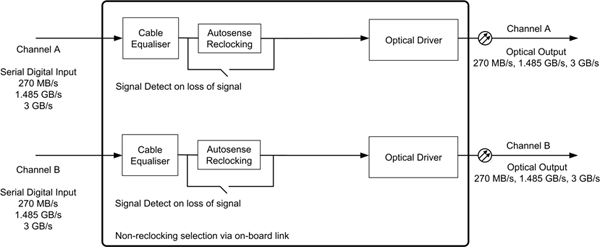

The BC323T is a transmitter module for the conversion of two independent 3G-SDI, HD-SDI, SD-SDI and ASI signals into fibre optical cable. Each incoming signal is auto-sensed and then equalised and reclocked prior to conversion and transmission down a separate single optical fibre. Each BC323T is housed in a compact robust enclosure and is designed for Outside Broadcast and special events as well as Studios. Power is provided via the PS12 unit supplied separately. The PS12 has an IEC mains inlet allowing easy adoption into standard equipment bays. The BC323T has a 4 pin XLR allowing power from a variety of external DC sources in the range 4.5 to 17 V. The BC323s are extremely compact dual channel fibre optic converters that are perfectly suited to provide interference free transmission and for extending the range of electrical signals, particularly HD-SDI and 3G-SDI signals. Each channel can operate in non-reclocking mode and handles data rates from 50 Mb/s to 3 Gb/s. The BC323T is available in singlemode, WDM and CWDM variants to suit any fibre application. The BC323T can also be used to interface to any of the standard Bluebell cards and enclosures.
Electrical Input
Standards SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M, DVB-ASI
Equalisation Automatic to 100 m @ 3 Gb/s Automatic to 200 m @ 1.485 Gb/s Automatic to 300 m @ 270 Mb/s Equaliser and reclocking can be bypassed to support data rates down to 50 Mb/s
Connector 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel
Return Loss > 15 dB @ 1.485 Gb/s
Format Reclocked (with bypass to support data rates down to 50 Mb/s) Please note that the factory default unless specified is for units to be supplied in reclocking mode. Non-reclocking settings are accessed via module pcb.
Optical Output
Connector 1 x female LC as standard per channel
Wavelength 1310 nm, 1550 nm, See Ordering Informationn
Optical Power -2 dBm @ 1310 nm (typical) -2 dBm @ 1510 nm (typical) 0 dBm @ CWDM (typical)
General card specifications
Length: 92 mm – 142mm Extended enclosure
Width: 64 mm
Height: 30 mm
Excluding connectors
Weight: 100 g
Operating Temp: -30 to +70 ºC
Power: 2.5 W
Voltage 4.5 to 17 V dc
Signal detect: LED on for loss of signal
Conformance
EMI/RFI: Complies with 89/336/EEC
Electrical: Complies with EN 61000-6-1, EN61000-6-2
Laser Safety Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11
