Monitory

Ikegami HQLM-1720WR

17-inch 4K/HD Multi-format LCD Monitor

Opis produktu

The HQLM-1720WR is equipped with 2 channels of 12G-SDI input as standard for effcient confguration with 4K equipment such as cameras and switchers. In addition, this monitor includes 3G-SDI, HD-SDI and HDMI inputs as standard. It has the fexibility to work with various interfaces in the image production feld. By employing a 16.5-inch 3840×2160 pixel UHD LCD panel using LED backlight, it can reproduce high resolution 4K and 2K images.

Diverse Input Signal Formats

Available with 12G-SDI, 3G-SDI (SQD/2SI), HD-SDI and HDMI (HDCP2. 2) inputs as standard. *Note: SQD=Square Division / 2SI=2 Sample Interleave

UHD LCD Panel

It employs a 16.5-inch 3840x2160 pixel UHD LCD panel with a contrast ratio of 800:1 (450cd/M2) using LED backlight. The monitor has a wide viewing angle allowing critical content evaluation within a horizontal or vertical viewing angle of up to 178 degrees.


Faithful Color Reproduction

It provides a wide color gamut corresponding to the ITU-R BT.2020 standard. *Color space can not be fully displayed.

Supports Audio Signals

Audio output is available through internal stereo speakers, stereo headphone jack and stereo l ine out by automatic identification of embedded audio signals multiplexed into the SDI or HDMI signal . An embedded audio level meter can be displayed on screen as standard. *Note: The output can be selected from a pair channels or a 5.1 channel down mix.

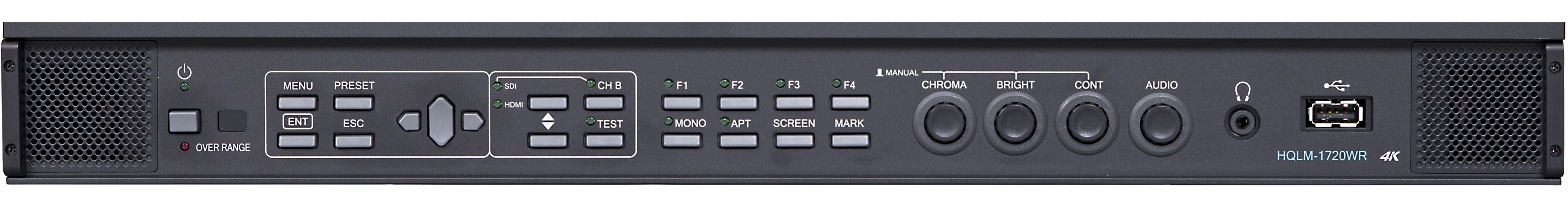

Variety of Useful Functions

  • Multi-viewer There is an available multi-display for up to 4 screens when inputting HD-SDI or 3G-SDI signals.
  • Time Code Time code (VITC/LTC) multiplexed into the HD-SDI signal can be displayed on the screen.
  • Remote Control Function The monitor can be controlled with the use of a parallel, serial, or wireless remote controller.
  • WFM / VSC Waveform and Vector displays are available on screen.
  • Test Pattern A variety of test patterns are built-in.
  • USB Memory Various data such as menu, preset and captured image can be stored and copied in a USB memory.
