Ikegami BS-98 Hybrid 4K

HDTV Camera Control Unit Hybrid 4K version with 3G Fibre Transmission 19″ Half-rack Size

62 747,29 zł

77 179,17 zł z VAT

Brak w magazynie

Opis produktu

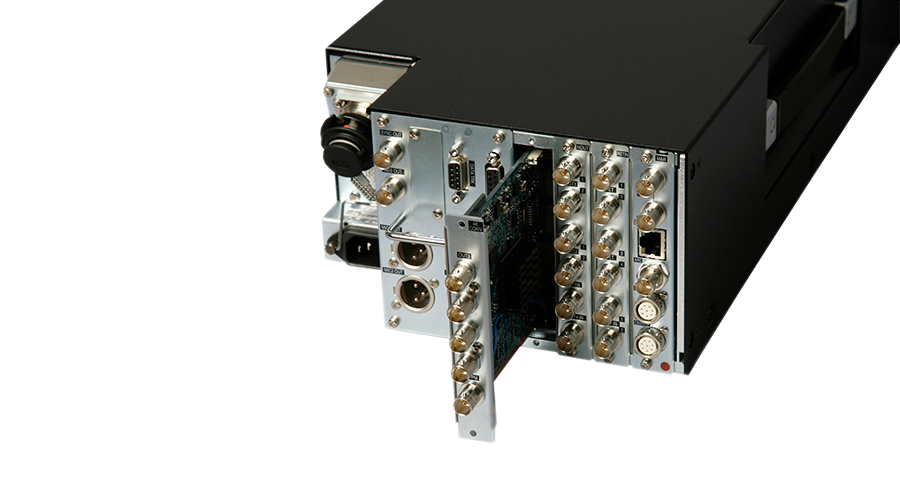

The BS-98 is a half rack size Hybrid 4K Base Station. It supports not only Ikegami’s conventional one-by-one ICCP control or Arcnet based network control systems, but also an Ethernet based control system, allowing customers to choose the camera control system based on their needs.
  • Support of 3G-SDI/HD-SDI/SD-SDI
  • Frame Synchronizer for Return Signal
  • 4 channels of Return Video Input
  • Embedded Audio available as Standard
  • Ethernet Port available

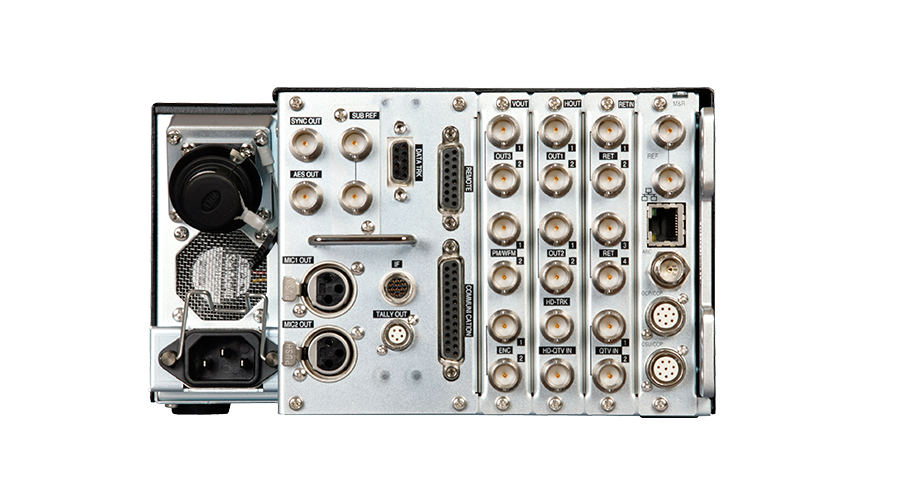

RATINGS / PERFORMANCE BS-98
Input Signal GENLOCK Tri-level sync or BBS 75 Ω BNC x2 (Loop Through), (HDTV / SDTV automatic detection), SUB REF: 10 Field ID 75 Ω BNC x2 (Loop Through)
Input Signal Return Video 3G / HD / SD-SDI BNC 4 ch single end input 2 ch Active-Through (Menu Selection)
Input Signal Q-TV SD VBS BNC 2 ch
Input Signal Q-TV HD HD-SDI BNC 1 ch
Input Signal Intercom Select from 4-wire / Clearcom / RTS
Input Signal PGM Sound 2-LINE
Input Signal Audio Trunk Option
Input Signal Tally R, G, Y
Output Signal 3G/Dual Link/HD-SDI NC 4 ch / Select from 3G-SDI / DUAL-LINK / HD-SDI
Output Signal 4K 1920 x 1080 Progressive Square Division 3G / HD-SDI 75 Ω BNC 4 ch 3G/HD-SDI 75ΩBNC 4ch
Output Signal Sync. Signal BNC 1 ch Select from HDTV (tri-level 0.6 Vp-p ) / SDTV (HV 2 Vp-p)
Output Signal Trunk Video HD-SDI BNC 1 ch (Only in 1.5 G mode)
Output Signal Intercom Select from 4-wire / Clearcom / RTS
Output Signal MIC 0 dBs standard 2 channels Low impedance
Output Signal Tally R, G, Y
Dimensions / Weight W 218 x H 125 x D 457 mm / approx. 9 kg
Power Consumption approx. 110VA (CCU only)
