CCU

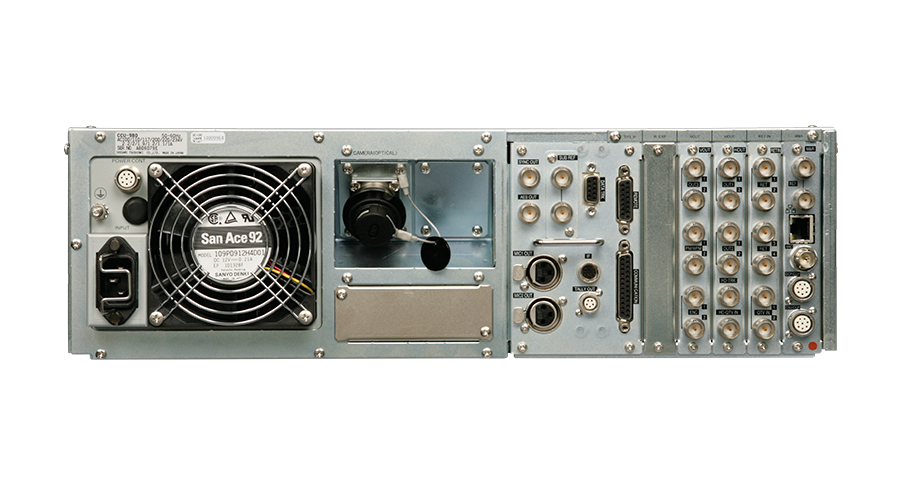

Ikegami CCU-980 Hybrid 4K

HDTV Camera Control Unit Hybrid 4K version with 3G Fibre Transmission full featured

93 907,50 zł

115 506,23 zł z VAT

Brak w magazynie

Opis produktu

The CCU-980 is a full rack size Hybrid 4K Camera Control Unit. It supports not only Ikegami’s conventional one-by-one ICCP control or Arcnet based network control systems, but also an Ethernet based control systems, allowing customers to choose the camera control system based on their needs.
  • Support of 3G-SDI/HD-SDI/SD-SDI
  • Frame Synchronizer for Return Signal
  • 4 channels of Return Video Input
  • Embedded Audio available as Standard
  • Ethernet Port available

RATINGS / PERFORMANCE CCU980
Input Signal Genlock Genlock Tri-level sync or BBS 75 Ω BNC x2 (Loop Through), (HDTV / SDTV automatic detection), SUB REF: 10 Field ID 75 Ω BNC x2 (Loop Through)
Input Signal Return Video 3G / HD / SD-SDI BNC 4 ch single end input 2 ch Active-Through (Menu Selection)
Input Signal Q-TV SD VBS BNC 2 ch
Input Signal Q-TV HD HD-SDI BNC 1 ch
Input Signal Intercom Select from 4-wire / Clearcom / RTS
Input Signal PGM Sound 2-LINE
Input Signal Audio Trunk Option
Input Signal Tally R, G, Y
Output Signal 3G/Dual Link/HD-SDI BNC 4 ch / Select from 3G-SDI / DUAL-LINK / HD-SDI
Output Signal 4K 1920 x 1080 Progressive Square Division 3G / HD-SDI 75 Ω BNC 4 ch
Output Signal Sync. Signal BNC 1 ch select from HDTV (tri-level 0.6 Vp-p ) / SDTV (HV 2 Vp-p)
Output Signal Trunk Video-Out HD-SDI BNC 1 ch (only in 1.5 G mode)
Output Signal Intercom Select from 4-wire / Clearcom / RTS
Output Signal MIC 0 dBs standard 2 channels Low impedance
Output Signal Tally R, G, Y
Dimensions / Weight W 483 x H 133 x D 454 mm / approx. 28 kg
