Base Station

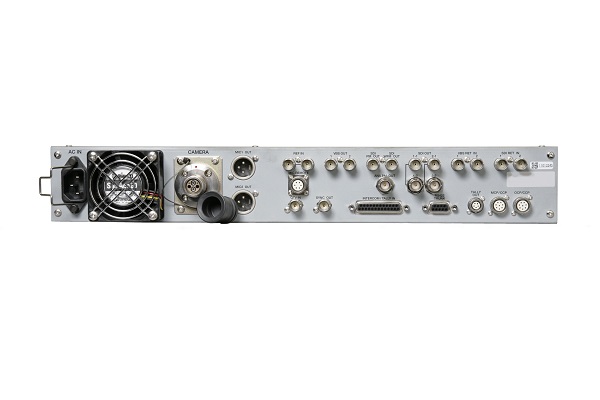

Ikegami BSF-300L

Affordable HDTV 1.5G Fiber Base Station (Lemo C/N) for FA-300L

Opis produktu

The BSF-300 and BSF-300L are Ikegami’s latest Fiber transmission system suitable for the operation with HDK-79GX/HDK-73/HC-HD300 camera system. The BSF-300L Base Station has SMPTE connectors for fiber cable connection. It can accept SMPTE hybrid cables. This enables affordable and flexible integration for a variety of applications.

The lightweight and compact size (1.5 RU) BSF-300 and BSF-300L are easily integrated into any studio, mobile truck, or portable flypack. When you use a hybrid fiber cable, the base station provides power to the fiber adaptor and the camera itself. Maximum length in powered system using hybrid fiber cable is up to 350m (1148ft) with VFL201A. (If VFL-P700, it is 250m (820ft))

Operating Humidity 30% to 90% (non-condensing)
Operating Voltage AC100V to 240V ±10%
Weight Approx. 7kg (15.4lbs)
Dimensions W483 x H66.4 x D405 mm (W19 x H2.6 x D15.9 inches) (excluding protrusions)
Power Consumption Approx.55VA (BSF-300 only)
Power supply to fiber adaptor 240W maximum (including cable loss)
Input signals
External Genlock BNC type, 1ch (HDTV/SDTV auto detect) HD: PS(1Vp-p) or Tri-Sync Signal(0.6Vp-p±6dB) 75ohm bridged SD: VBS(1Vp-p) or BBS 75ohm bridged
SDI Return Video Signal 75ohm Single End, BNC type 2ch (HD/SD SDI selectable)
VBS Return Video Signal 75ohm Single End, BNC type 2ch
Q-TV Signal VBS 1Vp-p 75ohm Single End, BNC type 1ch
Intercom/Tally
Intercom(ENG/PROD) 4-Wire, Clearcom or RTS selectable
4-Wire 0dBm 600 ohm 2ch
Clearcom -15dBs 200 ohm 2ch
RTS 0dBs 200 ohm 2ch
PGM(Program Sound) 0dBs 600 ohm/10k ohm switchable 2ch
Tally R/G 2ch
Output signals
HD-SDI/SD-SDI Signal HD-SDI(SMPTE292M) /SD-SDI(SMPTE259M), 75ohm BNC type 4ch(HD-SDI/SD-SDI selectable)
WFM Signal Serial Digital 75ohm BNC type 1ch (HD-SDI/SD-SDI selectable)
PM Signal Serial Digital or VBS 75ohm BNC type 1ch (HD-SDI/SD-SDI selectable)
VBS Signal 1.0Vp-p 75ohm BNC type 2ch
MIC 0dBs/+4dBs Low 2ch
Support Products ・broadcast/HDK-73 ・broadcast/HDK-79GX ・broadcast/HC-HD300
