Audio monitoring

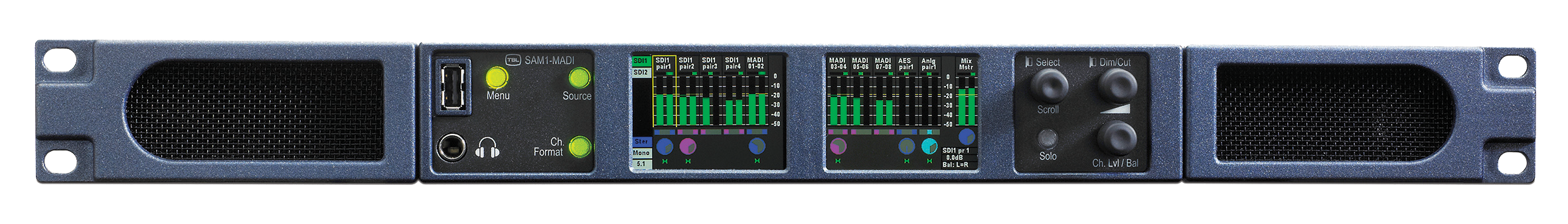

TSL SAM1 MADI SM

1 RU format audio monitor with 2 x LCD displays for comprehensive 20 channel audio monitoring and mixing (with individual channel trim and balance) and […]

Opis produktu

  • Support for Mono, Stereo and 5.1
  • Flexible input monitoring
  • Discrete 5.1 audio down mixing
  • Custom monitoring mix
  • Analogue, AES
  • Scroll to Hear channel selection
  • ‘Scroll To Hear’ – top level bargraph navigation using rotary encoder
  • Downmix of discreet multichannel audio to stereo for compatibility monitoring
  • Dual auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video inputs
  • De-embedded audio monitoring from video (HD/SDI) with intuitive selection from up to sixteen channels (four groups)
  • Individual channel level send / mix / balance control
  • Re-clocked HD/SDI video output
  • Dual high resolution 2.4″ screens for 20 bargraphs, setup and menu displays
  • Choice of user selectable bargraph scales (BBC PPM, EBU PPM, EBU Digital, Nordic,VU and DIN)

SPECIFICATION

  • Single 54/64 channel MADI input with coax connection, single mode or multi-mode fibre option
  • 54/64 channel MADI ‘reclocked’ loop output via coax connection
  • 54/64 channel MADI output with coax connection, single mode or multi-mode fibre option
  • 4 AES (4 Pairs/8 Channel) Inputs– 110Ohm Balanced or 75Ohm unbalanced via optional CAB-D25-BNC cable
  • 2 Analogue Stereo Inputs
  • USB connector for system updates and preset save/recall
  • SD card slot for system updates and preset save/recall
  • User programmable presets. 18 internal, accessible by high level menu selection or GPI
  • Fixed AES multichannel outputs (4 pairs/8 Channels)
  • High quality internal full range loudspeaker system
  • Dual 12V DC inputs
  • Compact, lightweight (weight tbc) 1RU case, 250mm deep
