Opis produktu

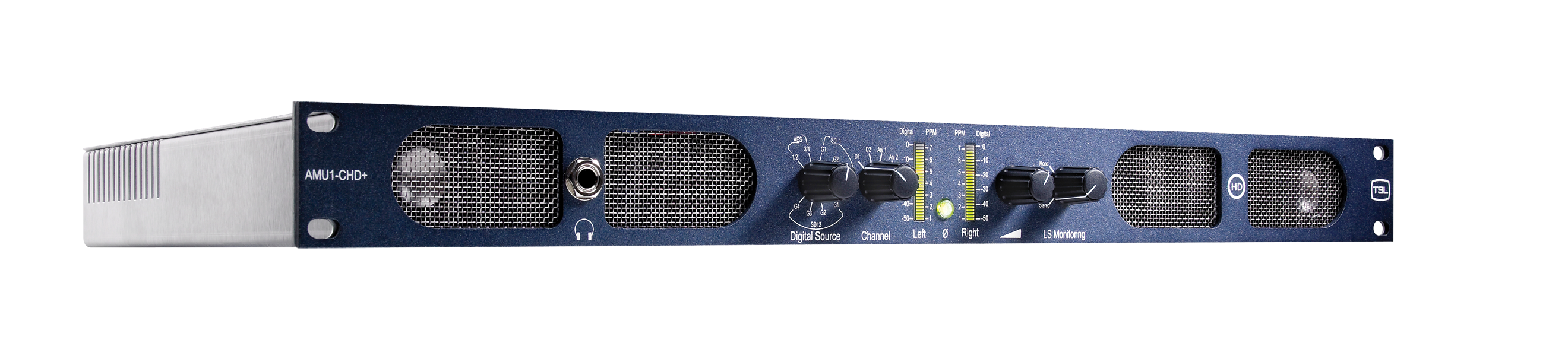

- Used in a racks area, Ingest desk, Master Control or any technical monitoring position
- Designed for use in environments where simple monitoring of stereo embedded audio is required
- Delivers pristine audio derived from either SDI, AES or Analogue audio inputs
- Provides instant access and Hi Fiquality audio monitoring of any pair from an SDI audio signal at the turn of a switch
SPECIFICATION

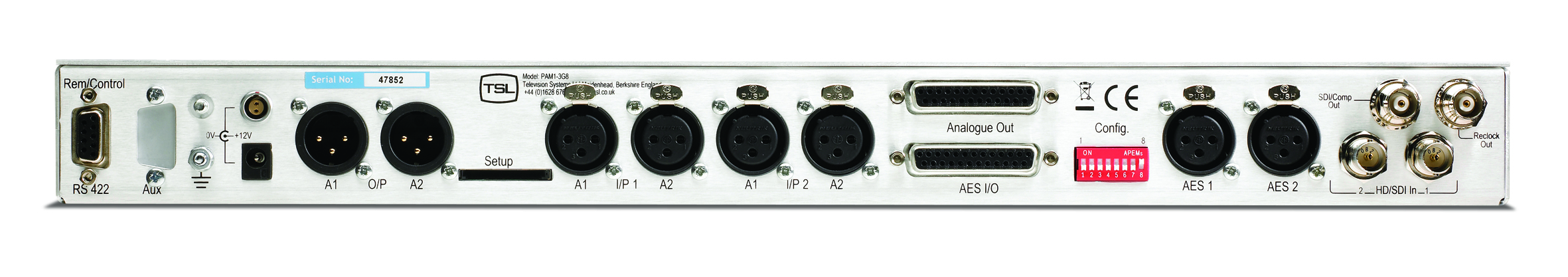

- 2 x HD/SDI inputs, 4 x AES inputs, 2 x Stereo Analogue inputs
- SMPTE 259M, 296M, 274M for 720P/1080i at 525/625 frame rates
- 4 x decoded AES outputs
- De-embedded audio monitoring from a digital video source
- Re-clocked digital video HD/SDI output
- Composite (PAL/NTSC) video output
- Dual 26 segment tri-colour bar graph display
- PPM and EBU digital ballistics
- Hi Fiinternal active loudspeaker monitoring system
- Out of phase indicator
- Four balanced AES input pairs withunbalancedoption
- Two stereo analogue audio inputs
