Flexible. Adaptable. Future Proof.
iAM-VIDEO is designed to be easy to operate, yet powerful enough to provide high quality, intuitive monitoring of multiple signal types within a compact form factor. It is equipped with high quality video and metering of a variety of input options including 3G/HD/SD-SDI, Analog, AES3 and MADI, with further options for IP formats including MPEG2TS, SMPTE 2022 and SMPTE 2110
, RavennaTM / AES67 and DanteTM
, and a growing range of additional I/O via an SFP interface.

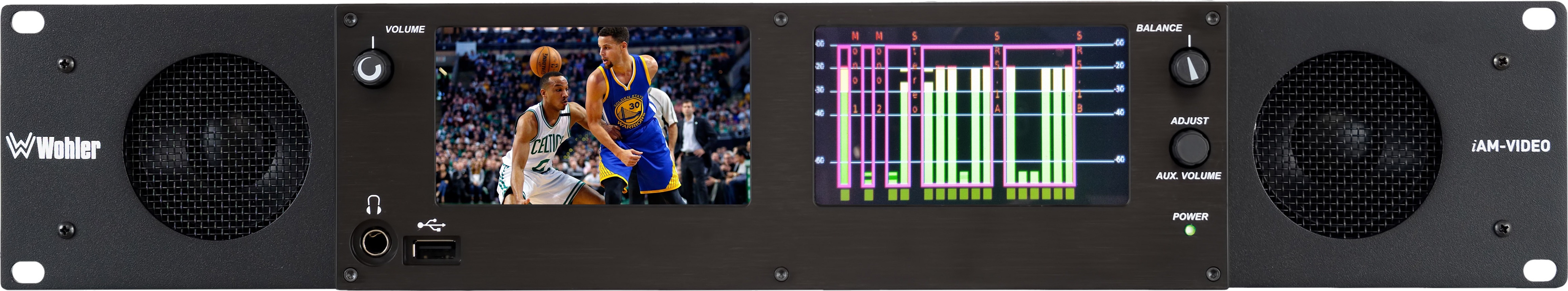

High quality touch screen panels allow for elegant and intuitive control, with simple to navigate menus and configuration. Physical front panel controls provide access to main and auxiliary volume controls, balance control and a front mounting USB port for simple software updates. With both front mounting speakers and sub-woofers, the iAM-VIDEO provides powerful sound output and audio reproduction that adheres to Wohler’s own strict specifications.
All iAM Series monitors are built with an on-board web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with authentication that protects critical configurations from unauthorized alteration.
FEATURES & BENEFITS:
- Touch screen front panel for easy, intuitive control
- Video monitoring and audio monitoring of up to 16 channels of audio from multiple sources
- Built-in speakers, headphone jack, USB and Ethernet ports
- A range of included and optional connectors and signal processing options, including MPEG 2/4, SMPTE 2110, SMPTE 2022-6, and SFP & Ethernet inputs for IP based I/O
- Store and retrieve presets via USB or remote software control
- Software upgradeable via USB or network, upgrade multiple units at once
- APIs included for remote control
