The AMP1-8-M offers fast, intuitive operation for monitoring SDI audio in the most demanding production applications. Whether in the studio or on the road, the AMP1-8-M provides instantaneous selection and summing of any grouping of SDI audio pairs. It features volume and balance controls, clear display of levels, and phase indications on bright 2.4″ LED-backlit LCD displays.
FEATURES:
- Simultaneous level metering of 8 de-embedded audio channels from SDI
- High resolution metering with 166-segment displays
- Quick, intuitive push-button selection of any pairs to sum to monitor
- Monitor through built-in speakers, headphones or analog outputs with optional muting for internal speakers
- Stereo or mono monitoring
- Stereo phase indicators
- Adjustable Volume amd Balance
- Balanced stereo analog outputs on XLR-Ms. Fixed level or volume/balance controlled.
- Automatic frame rate detection and selection
- Totally digital system architecture with high fidelity Class D amp
- Selectable line level or front panel volume control and outputs
- Shallow chassis depth for easy installation in OB vehicles and consoles

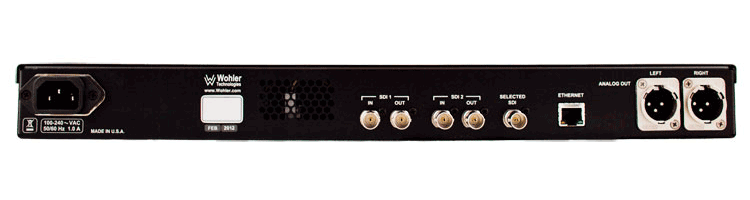

SIGNAL I/O
| 3G/HD/SD-SDI Input |
2 x 3G/HD/SD-SDI inputs on BNC |
| 3G/HD/SD-SDI Output |
2 x Looped 3G/HD/SD-SDI on BNC; 1 x Selected 3G/HD/SD-SDI on BNC |
| Analog Output |
2 x XLR of audio to speakers |
| Data Ports |
1 USB 2.0 Port for copying system configurations to another unit or to a PC; 1 Ethernet port used for updating software & firmware as well as copying/customizing/loading custom configurations |
