Video Monitoring

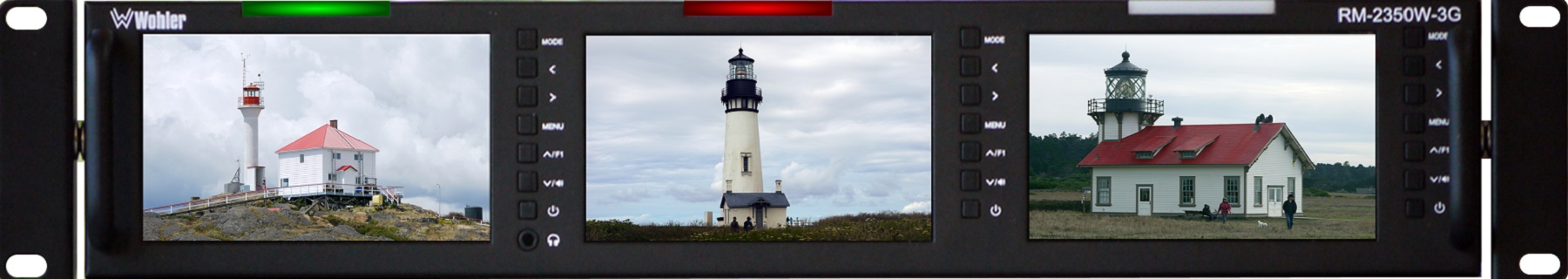

Wohler RM-2350W-3G

Opis produktu

The RM Series is a full-featured range of slim, in-rack video monitors ideal for mobile trucks, news and transmission control rooms, production/post-production and video surveillance applications.These tilting monitors come standard with in-monitor level metering, selectable video waveform/vectorscope/histogram, safe area and aspect ratio markers, IMD labeling, tally, and built-in color bars, as well as a variety of picture controls and assistive video features such as zoom controls and focus assist. All standard frame rates and resolutions are supported from 3G-SDI, HDMI or Analog input sources and each input has a looping output. Up to 16 audio channels may be selected for visual monitoring using on-screen bar graph style level meters. Monitoring speakers to the rear of the unit allow the selected screen to be audibly monitored, while a 3.5mm headphone socket provides optional private monitoring. Each of the high-resolution LCD screens displays high-definition or standard-definition video in a range of aspect ratios. Parameters are selected and adjusted using an on-screen display menu.

Features and Benefits:

  • On-screen level meters provide confidence audio monitoring.
  • Tally and on-screen labeling provide quick and easy signal identification.
  • Image controls allow video image enhancement for each screen, individually.
  • User-defined “hot-key” functionality provides access to key features with one touch.
  • On-screen video waveform, vectorscope and histogram displays.
  • Ratio and Safe Area markers.
  • Built-in color bars.
  • Intuitive on-screen menu.

SIGNAL I/O:

3G/HD/SD-SDI Input 1 x 3G/HD/SD-SDI on BNC (per screen)
3G/HD/SD-SDI Output 1 per screen, on BNC (loop out)
Analog Input 2 (1 left, 1 right) per screen, on RCA
HDMI Input 1 per screen, on HDMI type A
HDMI Output 1 per screen, on HDMI type A (loop out)
CVBS Input 1 per screen, on BNC
CVBS Output 1 per screen, on BNC (loop out)
Data Ports 2 RS-485 on RJ-45 for dynamic controls; 1 RJ-45 for tally control; 1 Ethernet connector; 1 USB Mini-B for software updates.
