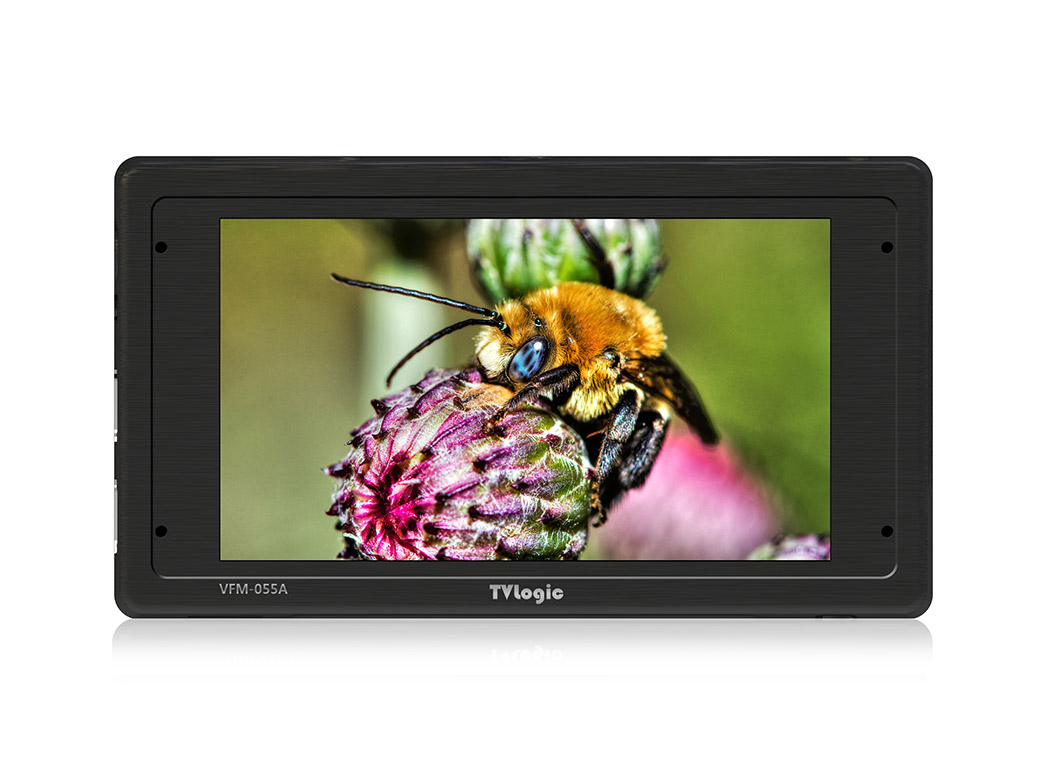

TVLogic VFM-055A

The VFM-055A is a 5.5-inch OLED (organic LED) on-camera viewfinder monitor with native 1920×1080 resolution

Opis produktu

The VFM-055A is a 5.5-inch OLED (organic LED) on-camera viewfinder monitor with native 1920x1080 resolution. It offers truly cinematic image quality with deep blacks, wide-gamut color reproduction, a very wide viewing angle, and support for multiple video formats via 3G-SDI and HDMI 1.4 inputs. Useful functions include cinema camera log-to-linear LUT conversion, HDMI-SDI cross-converted output options.

Display Spec

  •  Size        5.5"
  •  Resolution          1920 X 1080 (16 : 9)
  •  Pixe Pitch            0.063mm
  •  Color Depth       16.7M
  •  Viewing Angle  160°(H) / 160°(V)
  •  Luminance         350cd/m2
  •  Contrast Ratio  17000 : 1
  •  Display Area      121(H) × 68(V) mm

Input

  •  1 X BNC               3G-SDI A Channel Input
  •  1 X HDMI            HDMI Input

Output

  •  1 X BNC               3G-SDI Output
  •  1 X HDMI            HDMI Output

Audio

  •  Audio In               Embedded Audio/Analog Stereo (Phone Jack)
  •  Audio Out           Analog Stereo (Phone Jack)

FPGA Functions

  • 3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.,  Arri Camera Metadata

Other Functions

  •  USB        Firmware update by USB cable                 Firmware update by USB memory stick
  •  Conversion          HDMI-to-HDMI,  HDMI-to-SDI,  SDI-to-HDMI,  SDI-to-SDI,
