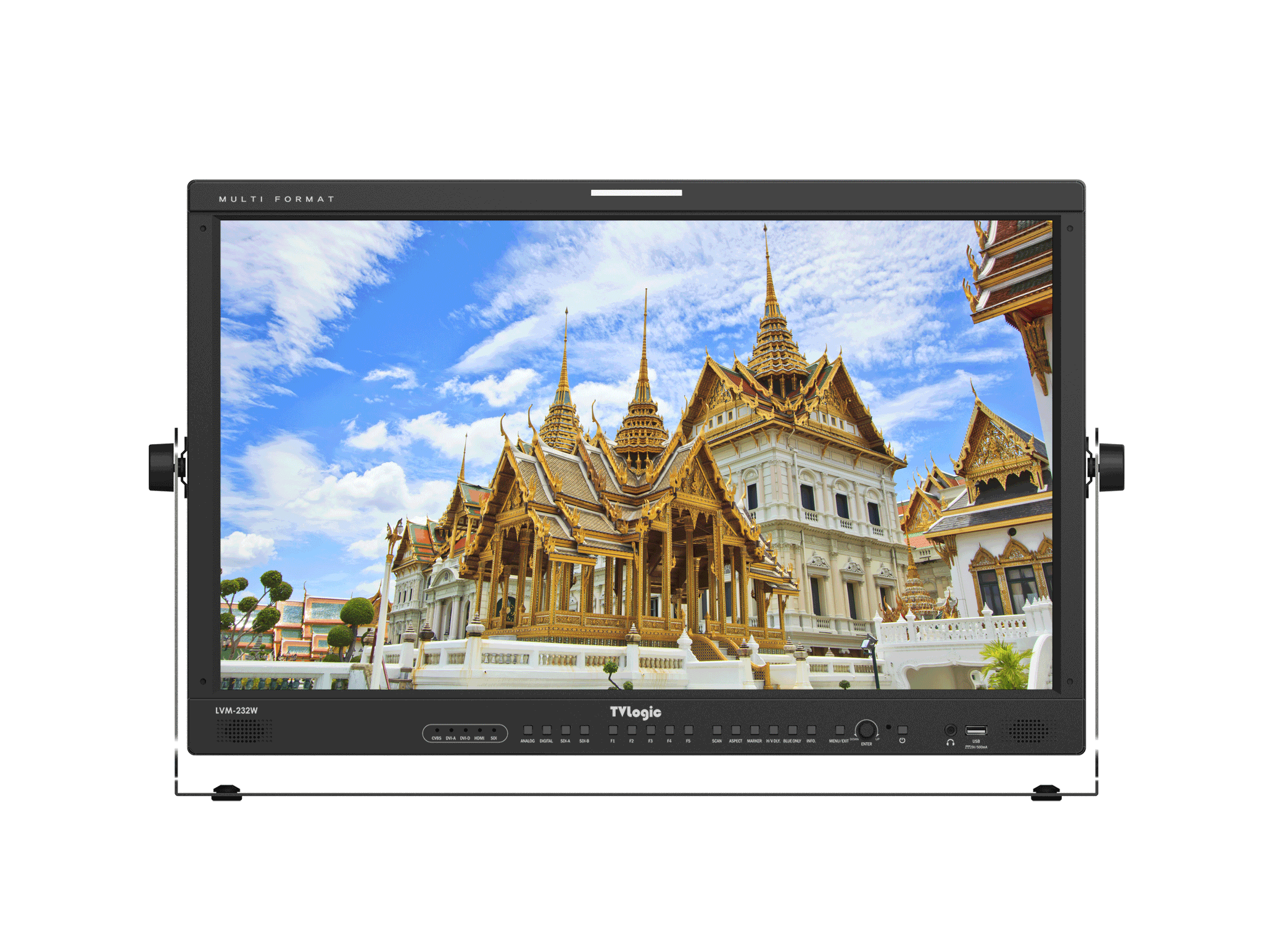

TVLogic LVM-232W-A. The LVM-232W-A is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features. Utilizing the state-of-the-art IPS LCD panel and combined with The TVLogic's excellent video processing technology, LVM-232W-A provides outstanding viewing angle with accurate colors and rich professional features.
Display Spec
- Size 23"
- Resolution 1920 X 1080 (16 : 9)
- Pixe Pitch 0.2652mm
- Color Depth 16.7M
- Viewing Angle 178°(H) / 178°(V)
- Luminance 250cd/m2
- Contrast Ratio 1000:1
- Display Area 509(H) x 286(V) mm
Input
- 1 X BNC Analog Input (Composite)
- 2 X BNC 3G-SDI A/B Channel Input
- 1 X HDMI HDMI Input
- 1 X DVI DVI Input
Output
- 1 X BNC Analog Output (Composite)
- 1 X BNC 3G-SDI A/B Channel Output
Audio
- Audio In Embedded Audio/Analog Stereo (Phone Jack)
- Audio Out Analog Stereo (Phone Jack), Internal Speaker(Stereo)
FPGA Functions
- 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom
Closed Caption
- CC-608 ANC, CC-608 LINE 21, CC-708
Calibration
- TVLogic Color Calibration Utility
Other Functions
- REMOTE TVLogic’s specification
- USB Firmware update by USB cable Firmware update by USB memory stick
- Conversion SDI-to-SDI,
