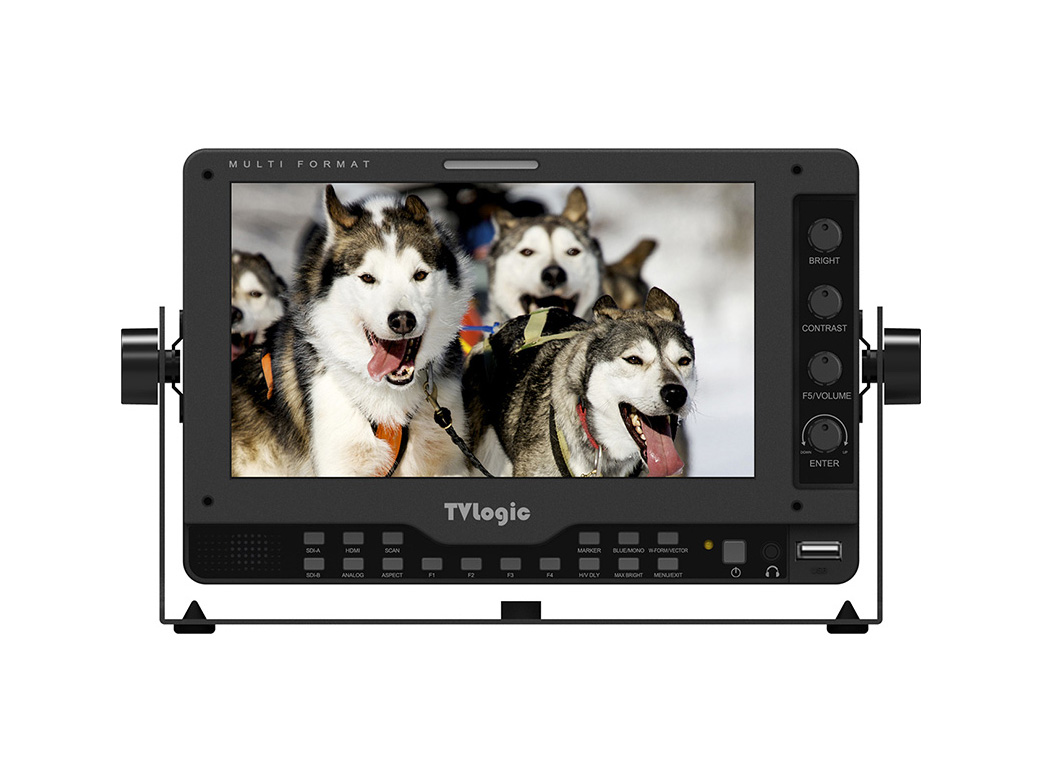

TVLogic LVM-075A

7” FHD Monitor

Opis produktu

TVLogic LVM-075A. The LVM-075A provides an outstanding picture quality with a Full HD resolution of 1920 x 1080. The LVM-075A supports for diverse Log files for cameras and Rec.709 color gamut. All the professional features including Temperature Adaptive Color, Waveform/Vectorscope, Focus Assist, Camera Lut., Audio Level Meter, UMD and Closed Captions are also supported.

Display Spec

  •  Size        7"
  •  Resolution          1920 x 1080 (16 : 9)
  •  Pixe Pitch            0.081mm
  •  Color Depth       16.7M
  •  Viewing Angle  170°(H) / 170°(V)
  •  Luminance         600cd/m2
  •  Contrast Ratio  800:1
  •  Display Area      155(H) x 87(V) mm

Input

  •  3 X BNC               Analog Input (Component)
  •  2 X BNC               3G-SDI A/B Channel Input
  •  1 X HDMI            HDMI Input

Output

  •  1 X BNC               3G-SDI Output
  •  1 X HDMI            HDMI Output

Audio

  •  Audio In               Embedded Audio/Analog Stereo (Phone Jack)
  •  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

  •  1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.

Closed Caption

  •  CC-608 ANC,  CC-608 LINE 21,  CC-708

Other Functions

  •  REMOTE               TVLogic’s specification
  •  USB        Firmware update by USB cable
  •  Ethernet Control support
  •  Conversion          HDMI-to-HDMI,  HDMI-to-SDI,  SDI-to-SDI,
