Monitory

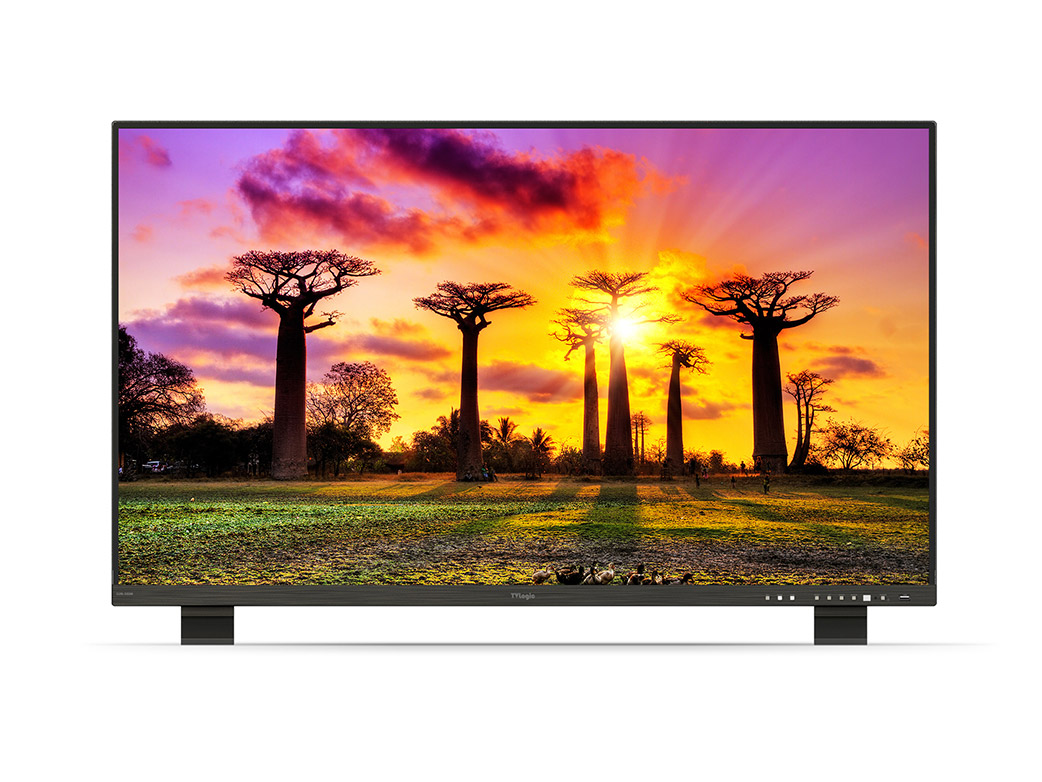

TVLogic LUM-550M

55” UHD 12G-SDI Monitor

Opis produktu

The LUM-550M (LUM-430M) is a 4K/UHD monitor with a 55"(42.5") True UHD(3840x2160) resolution and True 10-bit drivers. It supports 12G/6G/3G-SDI inputs and a HDMI 2.0 input.

Display Spec

  •  Size        55"
  •  Resolution          3840 X 2160 (16 : 9)
  •  Pixe Pitch            0.315mm
  •  Color Depth       1.07B
  •  Viewing Angle  178°(H) / 178°(V)
  •  Luminance         500cd/m2
  •  Contrast Ratio  1,100 : 1
  •  Display Area      1384(H) x 680(V) mm

Input

  •  4 X BNC               12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
  •  1 X HDMI            HDMI Input (HDMI 2.0a)

Output

  •  1 X BNC               12G SDI Output 1Ch (All Input Format Converted to 12G-SDI)

Audio

  •  Audio In               Embedded Audio/Analog Stereo (Phone Jack)
  •  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

  •  1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Marker,  Time Code Display

Calibration

  •  TVLogic Color Calibration Utility

Other Functions

  •  REMOTE               TVLogic’s specification
  •  USB        Firmware update by USB cable                 Firmware update by USB memory stick
  •  Ethernet Control support
  •  Conversion          SDI-to-SDI
