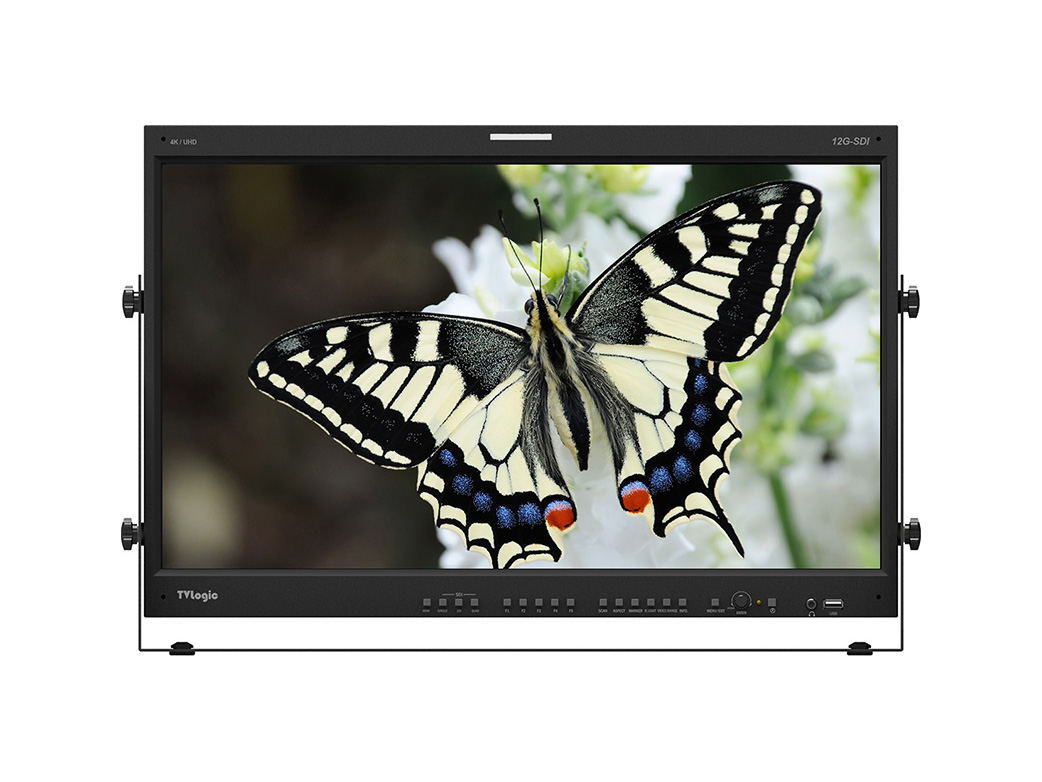

TVLogic LUM-240G

24” UHD 12G-SDI Single Link Monitor

Opis produktu

Whether you are capturing HD, 2K, or UHD the LUM-240G should be part of your workflow. The ability to connect to 3G, 6G and 12Gig links without compromise, provides you with confidence throughout the acquisition and post path. The LUM-240G is a 24’‘ 4K(3840×2160) monitor with 12G-SDI interface - 4×3G-SDI / 2x6G-SDI & 12G-SDI. The LUM-240G supports various video formats including 12G/ 6G/ 3G/ HD-SDI and HDMI 2.0. The LUM-240G provides wide color gamut up to DCI and includes 3D LUT support and a full feature set. The LUM series is an integral part of scores of productions. The LUM 240G brings to the discerning user support for the latest 4K capture modes. The key features include wide color gamut, color accuracy, up to 12G SDI support, HDR mode and waveform support.

Display Spec

  •  Size        23.8"
  •  Resolution          3840 x 2160 (16 : 9)
  •  Pixe Pitch            0.137mm
  •  Color Depth       1.07B
  •  Viewing Angle  178°(H) / 178°(V)
  •  Luminance         350cd/m2
  •  Contrast Ratio  1000:1
  •  Display Area      527(H) x 296(V) mm

Input

  •  4 X BNC               12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
  •  1 X HDMI            HDMI Input (HDMI 2.0a)

Output

  •  4 X BNC               12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)

Audio

  •  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

  • Blue Only,  H/V Delay,  Marker,  Mono,  SingleMode

Calibration

  •  TVLogic Color Calibration Utility

Other Functions

  •  REMOTE               TVLogic’s specification
  •  USB        AUTO Calibration             Firmware update by USB cable                 Firmware update by USB memory stick
  •  Conversion          SDI-to-SDI,
