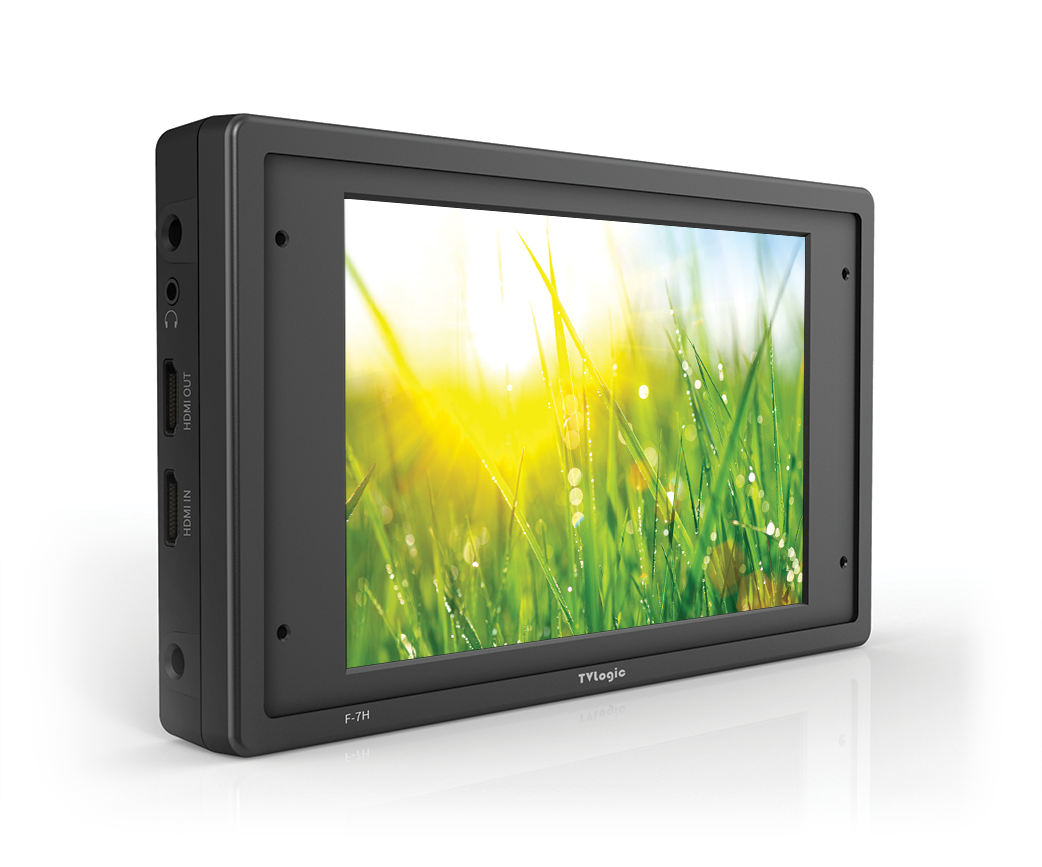

TVLogic F-7H

7” FHD HDR Field Monitor with 3G-SDI & HDMI 1.3 (Max Luminance 3,600nit)

Opis produktu

The F-7H is a 7-inch field Full HD resolution (1920 x 1080) production monitor with ultra-high luminance of 3,600nit. The F-7H provides SDI HDMI cross conversion with 1 SDI input, 1 SDI output, 1 HDMI input and 1 HDMI output interfaces. It also supports all the professional features such as Waveform & Vectorscope, Audio Level Meters, Focus Assist, Range Error, Time Code Display, various Aspect Ratio and Markers, 3D LUT import, Camera Logs and HDR emulationincluding HDR EOTFs of PQ, HLG and SLog3.
  • Size 7”
  • Resolution 1920 x 1080 (16 : 9)
  • Pixel Pitch 0.078(H)×0.078(V)mm
  • Color Depth 16.7M
  • Viewing Angle (Typ.) 160°(H) / 160°(V)
  • Luminance (Max.) 3600cd/m2
  • Contrast Ratio 1200:1
  • Display Area 151.2(H)×94.5(V)mm

Input

  • 1 x BNC SDI Input
  • 1 x HDMI HDMI Input

Output

  • 1x BNC SDI Output, HDMI to SDI conversion output
  • 1x HDMI HDMI Output, SDI to HDMI conversion output

Input Signal

  • 3G-SDI 2.970Gb/s
  • HD-SDI 1.485Gb/s
  • SD-SDI 270Mb/s
  • HDMI 1080p(60/59.94/50/30/25/24/23.98) /1080i(60/59.94/50) /720p(60/50) /480i(60)/480p(60) / 576i(50)/576p(50)

SDI Input Signal Formats

  • SMPTE-425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
  • SMPTE-274M 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.8sF)
  • SMPTE-296M 720p (60/59.94/50)
  • SMPTE-125M 480i (59.94)
  • ITU-R BT.656 576i (50)
  • 2K Format 2048×1080p(24/24sF/23.98/23.98sF)
Audio In Embedded Audio Audio Out Analog Stereo (Phone Jack) Power DC 12V Power Consumption (Approx.) TBD Operating Temperature 0°C to 45°C (32°F to 113°F ) Storage Temperature -20°C to 60°C (-4°F to 140°F ) Accessory D-Tap Cable Case Camera Mount / BNC Connector
