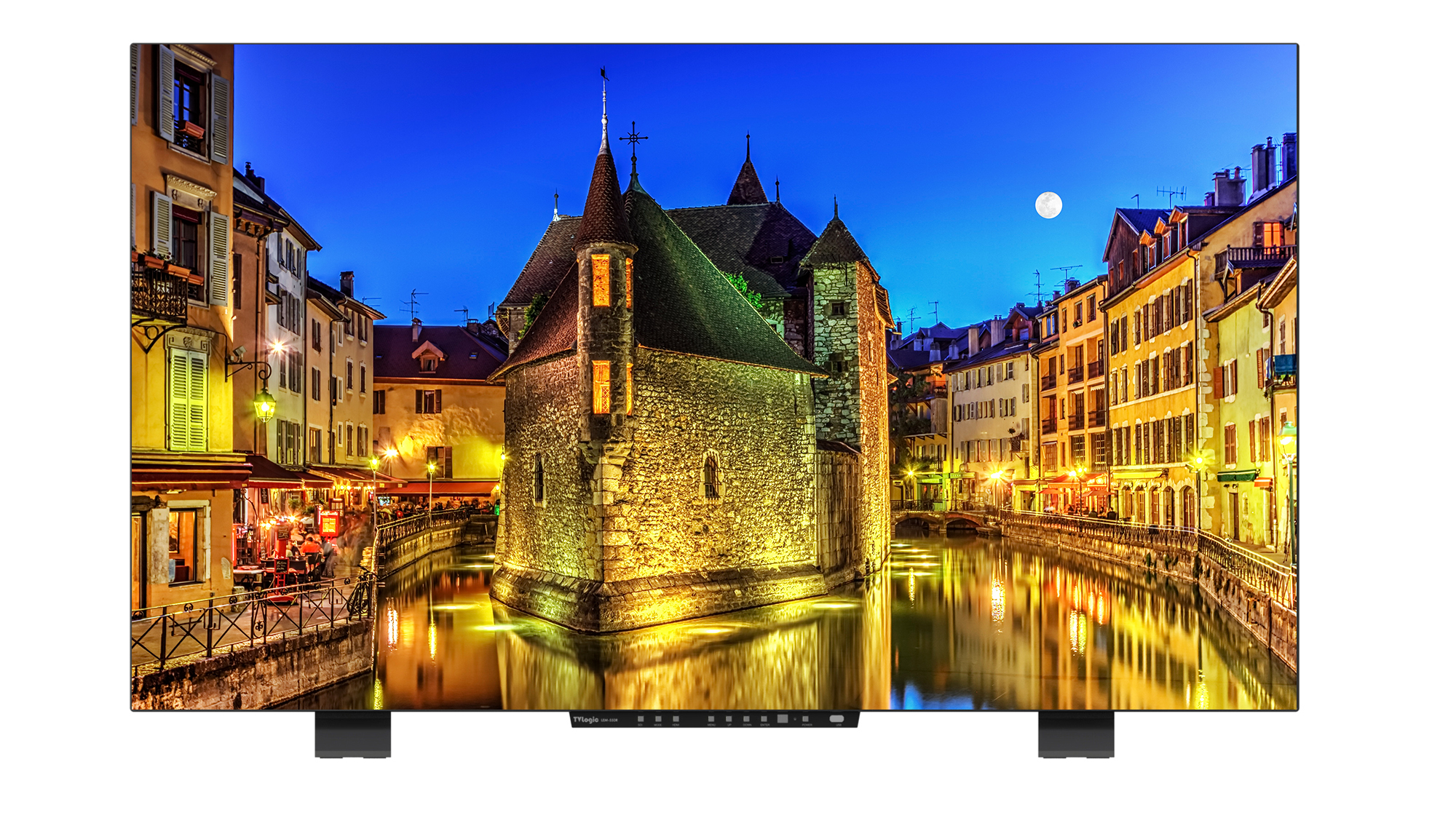

TVLogic LEM-550R

Studio Wall Monitor

Opis produktu

The LEM-550R is QC-Grade HDR monitor for broadcast and post production with a 55-inch OLED panel with UHD resolution of 3840 × 2160. The OLED panel can reproduce a maximum luminance of up to 750 nits. The LEM-550R supports various HDR standards such as SMPTE 2084PQ, Hybrid-Log Gamma (HLG), and others. It also supports multiple color gamuts including Rec.709, DCI, and Rec.2020. Signal I/O includes 3G/6G/12G-SDI input via one, two, or four SDI connections as well as HDMI (ver.2.0).

Display Spec

  •  Size        54.6"
  •  Resolution          3840 X 2160 (16 : 9)
  •  Pixe Pitch            0.315mm
  •  Color Depth       1.07B
  •  Viewing Angle  179°(H) / 179°(V)
  •  Luminance         HDR 750cd/m2
  •  Contrast Ratio  HDR140,000 : 1
  •  Display Area      1209(H) × 680(V) mm

Input

  •  4 X BNC               3G-SDI A/B/C/D Channel Input
  •  1 X HDMI            HDMI Input

Audio

  •  Audio In               Embedded Audio/Analog Stereo (Phone Jack)
  •  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

  • Audio Level Meter Display,  H/V Delay,  Time Code Display

Other Functions

  •  Reference Sync input      EXT_Sync in
  •  REMOTE               GPI (RJ45)
  •  REMOTE               TVLogic’s specification
  •  USB        Firmware update by USB cable
  •  Ethernet Control support
  •  Conversion          SDI-to-SDI,
