Opis produktu

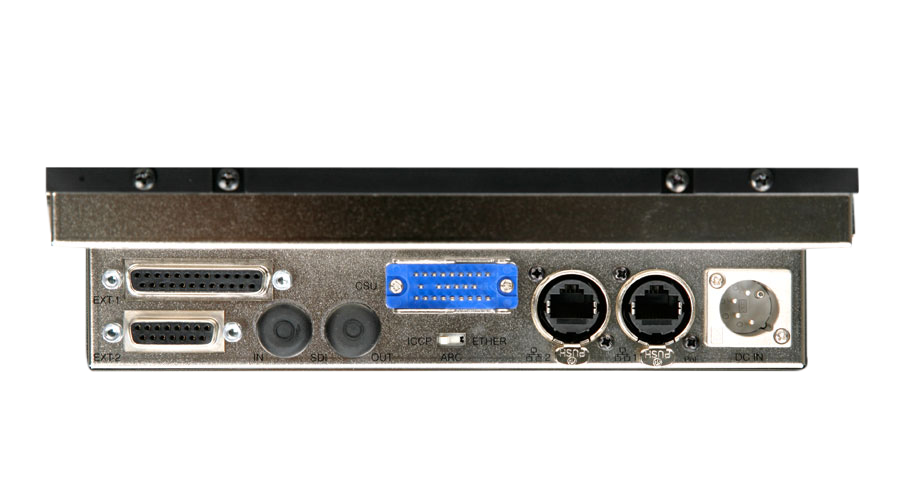

The MCP-300 is a newly designed network master control panel for use with not only Ikegamis conventional ICCP control and Arcnet based control, but also Ethernet based control, allowing customers the flexibly to choose the camera control system based on their needs. As a master control panel, it provides simultaneous operation for up to 10 cameras, moreover up to 100 cameras can be selected (10 cameras x 10 groups). The MCP-300 also supports PoE, Powering over Ethernet, so a separate power supply is not necessary.
- Ethernet / Arcnet / ICCP Multi-Network Control System
- Large Touch Screen LCD
- Illuminated Control Panel
- User Customize Functions
- Character Output Function (Option)
| RATINGS / PERFORMANCE MCP-300 | |
|---|---|
| Power Requirement | DC +12 V (+ 10 to +18 V) |
| Power Consumption | 13 W (Standard) |
| Cable Length (max.) | 10 m (MCP Cable without DC IN) 30 m (MCP Cable with DC IN) 100 m (LAN Cable, CAT5e or higher) |
| Operating Temperature | 0 °C to + 45 °C (+ 32 °F to + 113 °F) |
| Storage Temperature | - 25 °C to + 60 °C (- 13 °F to + 140 °F) |
| Operating Humidity | 30 % to 90 % (non-condensing) |
| Dimensions | W 204 x H 354 x D 79.4 mm (W 8.03 x H 13.94 x D 3.13 inch) |
| Weight | Approx. 2.6 kg (5.73 lbs) |
