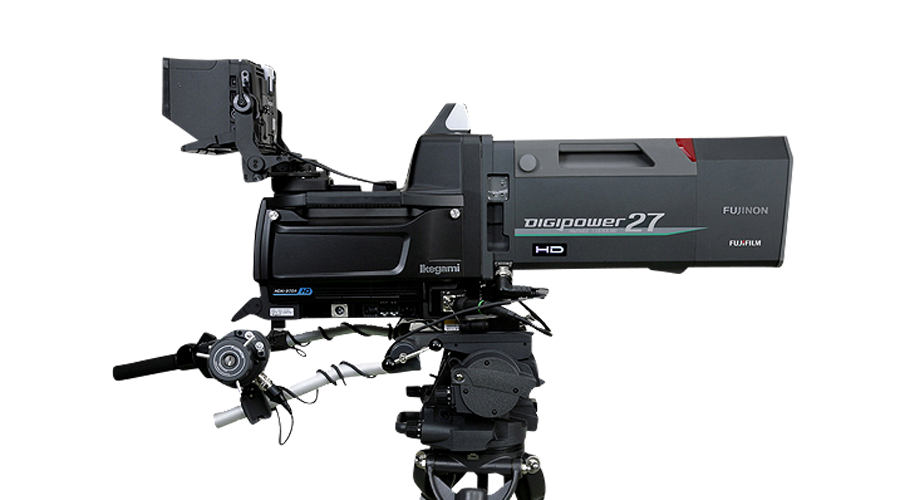

Ikegami HDK-970A2

“Unicam HD” 3G HDTV Live Caemera integrated with 3G Fiber Adaptor 2/3″ 2.3 M Pixel AIT Progressive CCD (1080p/720p)

Opis produktu

HDK-970A/970AP is a top of the line in 16-Bit Full Digital 3G HDTV Studio / EFP Camera System. It combines the highest picture quality, functionality and reliability. The camera supports 3G-HDSDI 1080p (59.94 / 50 Hz) wide-band video processing as a standard feature for the highest picture quality. Both the single and dual link output are available in connection with CCU-970 and BS-97 Camera Control Units and Base Stations. Integrating Ikegami’s advanced picture processing technology with digital processing technology maximizes the effect of 16-Bit A / D conversion, increasing gradation in dark areas where the processing is performed for more natural reproduction of dark colours.
  • Video processing Technology to maximize the Benefit of 16-Bits
  • Newly developed 2.3 Megapixel progressive Sensors
  • Newly developed FPGA
  • 3 Gbps high bit-rate Video Output
  • Native support for 23.98 P Formats
  • Custom Gamma Function
  • Variable Colour Depth Function
  • Lens Aberration Correction Function

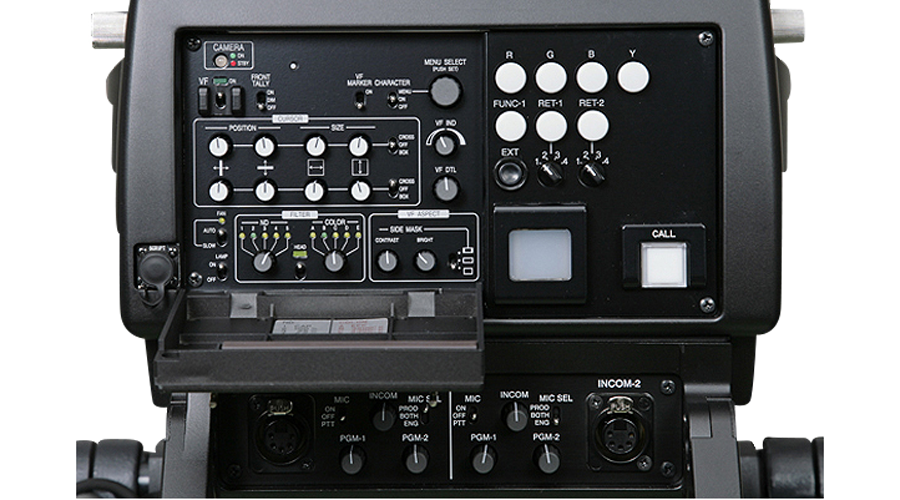

  • Sophisticated Camera Control Panel System
  • Compatibility with all Unicam HD Systems

RATINGS / PERFORMANCE HDK-970A
Image Sensor 2/3-inch 2.3 Megapixel Progressive CCD
Scanning System Multi-Format
Optical System 2/3-inch, RGB 3CCD, f 1.4
Sensitivity F10 (1080/59.94 i), F11 (1080/50 i) typical at 2000 lx
S/N Ratio / Limiting Resolution 62 dB (1080 i) / 1000 TV lines (1080 i)
ND Optical Filter Disc CAP, 100 %, 25 %, 6.2 %, 1.6 % (Optional AA-OLPF exchangeable to any position)
Optical Filter Disk CROSS, 3200 K, 4300 K, 6300 K, 8000 K (Optional AA-OLPF exchangeable to any position)
Electrical Colour Compensation 5600 K
Electrical Gain / Electrical Shutter -3 dB, 0 dB, +3 dB, +6 dB, +9 dB, +12 dB / 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000
Digital Extender 1.5 X, 2 X, 3 X, 4 X
Output Format with CCU-980 or CCU-970 or BS-98 1080 p 50 / 59.94 YPbPr 4:2:2; 720 p 50 / 59.94 YPbPr 4:2:2; 1080 i 50 / 59.94 YPbPr 4:2:2; 1080 i 50 / 59.94 RGB 4:4:4; 1080 i 100 / 119.88 YPbPr 4:2:2 (Option);1080 psf 25 / 29.97 YPbPr 4:2:2; 1080 p 25 / 29.97 YPbPr 4:2:2 (Option); 1080 p 23.98 RGB 4:4:4 (HDK-970AP only); 1080 psf 23.98 RGB 4:4:4 (HDK-970AP only); 1080 p 23.98 YPbPr 4:2:2 (HDK-970AP only); 1080 psf 23.98 YPbPr 4:2:2 (HDK-970AP only); 576 i 50 YPbPr 4:2:2 & 480i 59.94 YPbPr 4:2:2 (Option Board)
Input Signals External Sync SYNC 0.6 V p-p ±6 dB 75 Ω BNC CN 1 ch (BB / PS signal)
Input Signals Audio -60 dB to +4 dB (variable) / -20 dB (fixed) XLR-3 CN 2 ch (600 Ω balanced)
Input Signals Intercom ENG / PRD / PGM-1/2 XLR Type or 110 Type CN 2 ch
Input Signals Video Trunk HD-SDI BNC 1 ch (available only when operated in 1.5 G)
Output Signals 3G-SDI / HD-SDI Serial Digital 75 Ω BNC 1 ch
Output Signals Monitor Video VF / RET / MON (MENU Selection) Serial Digital 75 Ω BNC 1 ch or VF / RET / MON / HD-QTV (MENU Selection) Serial Digital 75 Ω BNC 1 ch (factory option)
Output Signals Q-TV 75 Ω VBS 2ch (2nd channel is option, and 1 ch only in 720 p/50 Hz)
Output Signals DC-Out +12 V DC 500 mA
Dimensions / Weight W 315 x H 462 x D 517 mm (excluding lens) / approx. 24 kg
Operating Temperature -20 °C to +45 °C
Relative Humidity 30 % to 90 % (non-condensing)
Operating Voltage AC 100 / 110 / 117 / 220 / 240 V ±10%
Power Consumption Approx. 100 W (1080 p Format)
