Patch panels

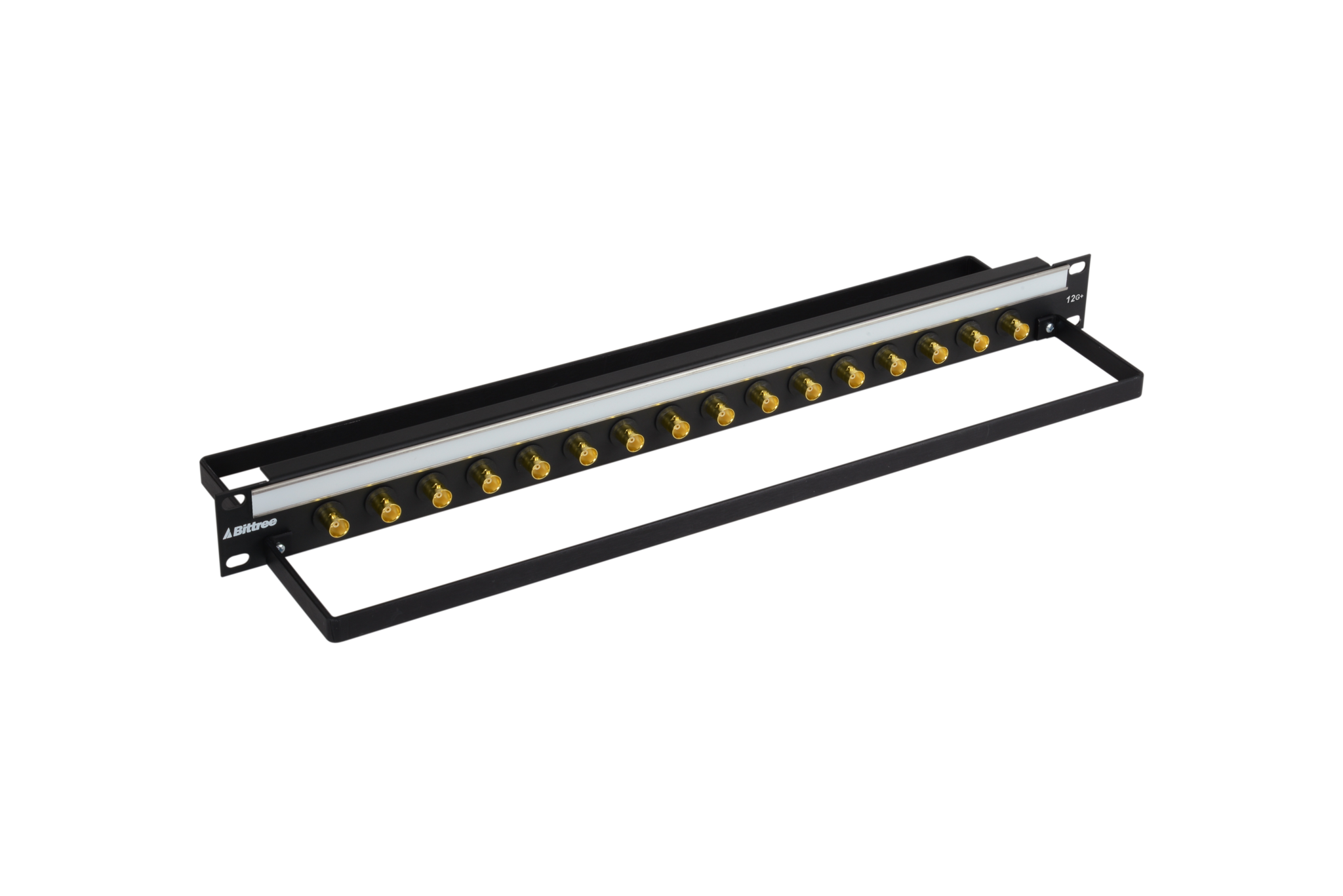

Bittree 12G+ BNC Coaxial Bulkhead Patch Panel, 1×16, 1 RU

1 RU, 1 row of 16 connectors, BNC to BNC, 20 GHz, 1 designation strip

1 110,37

1 365,76  z VAT

Brak w magazynie

Opis produktu

BNC Jack Properties:

• 20 GHz high-bandwidth performance for SD/SDI, HD/SDI, 3 Gb/s, 3D, UHD, 4k, and 8K applications • SMPTE 292M, 424M, 2081-1, and 2082-1 compliant • 75 ohm impedance with low return loss • 500 Mating cycles • Operating temperature: -35 to +165°C • IP64 (mated)

Panel Features:

• 1/16” (0.062 in. / 1.57 mm) folded aluminum with a durable black powder-coat finish • BNC connectors on both the front and back of the panel • Silk screened circuit numbering on both the front and back with optional designation strip available for the front • Two 3" (7.62 cm) deep lacing bars for cable dressing (both are removable) • Alternative 6" (15.24 cm) deep lacing bars available; please make a request at checkout if interested
