Bluebell BC550R

Opis produktu

BC550R Electrical to Optical Receiver 3G-SDI, HD-SDI, Control, Audio

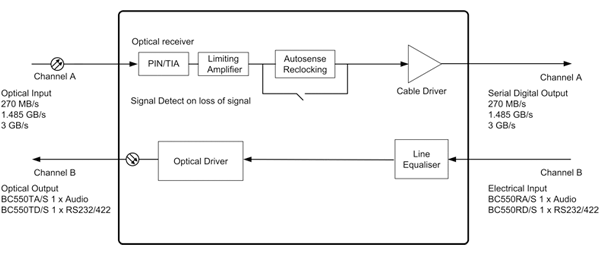

The BC550R is a receiver for the conversion of an optical signal into electrical 3G-SDI, HD-SDI, SD-SDI and ASI. The incoming optical signal is fed to a trans-impedance and limiting amplifier before being electrically reclocked on the output. A reverse path for an audio or control data signal is carried on a second fibre making the BC550 perfect for adding cost effective fibre I/O to compact remote camera systems. Each BC550R is housed in a compact robust enclosure with power provided via the PS12 unit. The PS12 has an IEC mains inlet allowing easy adoption into standard equipment bays. A 4 pin XLR allows the BC550R to be powered from a variety of external DC sources in the range 4.5 to 17 V. The BC550 units are extremely compact fibre optic converters that are perfectly suited to provide interference free transmission and for extending the range of electrical signals, particularly HD-SDI and 3G-SDI signals. The BC550R is available in singlemode, WDM and CWDM variants to suit any fibre application. The BC550R can also be used to interface to any of the standard Bluebell enclosures.
Optical Input/Output
Connector 1 x female LC as standard per channel See Ordering Information
Wavelength 1270-1610 nm See Ordering Information for multimode and singlemode variants
Sensitivity > -25.0 dBm @ 3 Gb/s > -25.5 dBm @ 1.485 Mb/s > -26.0 dBm @ 270 Mb/s
Max I/P power > -1 dBm
Data rate 50 Mb/s to 3 Gb/s
Electrical Input/Output
Standards SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE297M, DVB-ASI Automatic rate selection for 3G-SDI, HD-SDI and SD-SDI data rates.
Connector 1 x 75 Ohm BNC per IEC 60169-8 Amendment 2 per channel
Return Loss > 15 dB @ 1.485 Gb/s
Polarity 1 x Non inverting, 1 x inverting output
Signal Level 800 mV +/- 10%
DC Offset 0 +/- 0.5 V
Jitter <0.15 UI line equalised
Format Reclocked (with bypass to support data rates down to 10 Mb/s) Please note that the factory default unless specified is for units to be supplied in reclocking mode. Non-reclocking settings are accessed via module pcb.
Electrical Input BC550TA/S
Connector XLR
Format 1 x analogue audio, 20 Hz—20 kHz
Connector 9 pin D type
Format 1 x RS232/RS422
General specifications
Length 92 mm
Width 64 mm
Height 30 mm Excluding connectors
Weight: 100 g
Temp Range -30 to +70 ºC
Power 2 W
Voltage 4.5 to 17 V dc
Signal detect LED on for loss of signal
EMI/RFI: Complies with 89/336/EEC
Electrical: Complies with EN 61000-6-1, EN61000-6-2
Laser Safety Complies with Class 1 laser product 24 CFR 1040.10 & 1040.11
RoHS: Complies with Directive 2002/95/EC
IP Rating IP50
Warranty: 5 years
