Audio monitoring

TSL TOUCHMIX

48 channel Rackmount audio mixer/router/monitor. 2U, Inputs; 1 x 3G SDI, 8 x Stereo pairs, 8 x AES, 8x stereo analogue 22:9 aspect ratio touchscreen, […]

Opis produktu

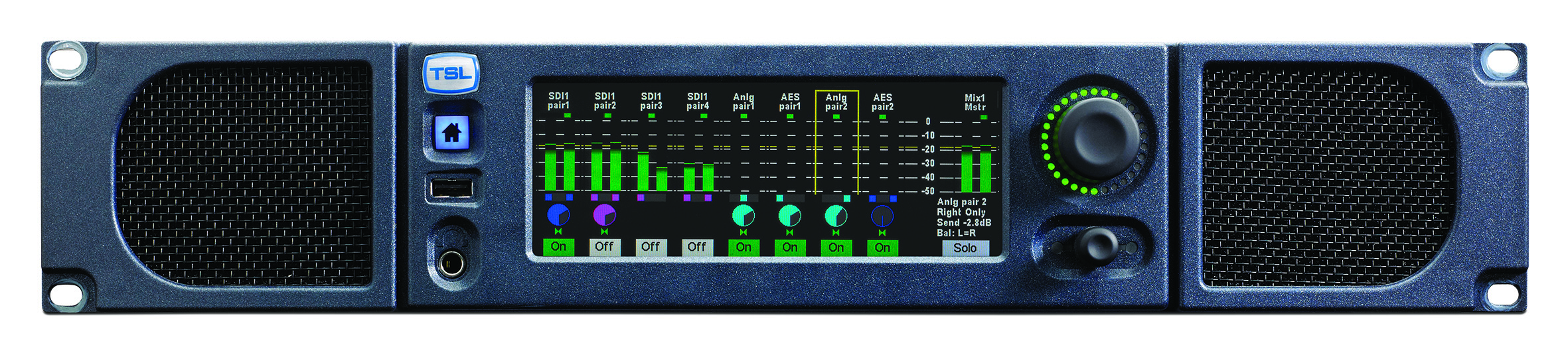

  • Touchscreen control
  • Custom mix
  • Multiple I/O
  • XY router control
  • Surround mixing in 5.1
  • Position a mono source in a 5.1 mix
  • Position a mono signal across the LCR sound stage
  • Manage, recall and save favourite configurations via USB stick or SD card
  • Home’ button for instant recall of default operating condition
  • Choice of user selectable bargraph scales (BBC PPM, EBU PPM, EBU Digital, Nordic, VU and DIN)
  • Downmix of discrete multichannel audio to stereo for compatibility monitoring
  • De-embedded audio monitoring from single video (HD/SDI)
  • Identical twin audio mixers
  • High quality internal full range loudspeaker system

SPECIFICATION

  • Auto-sensing, 1080p (60, 59, 94 and 50Hz), HD/SDI video input
  • 10 stereo/ 20 dual mono assignable input channels per mixer
  • Re-clocked HD/SDI video output
  • 18 User programmable presets.
  • Dual 12V DC inputs

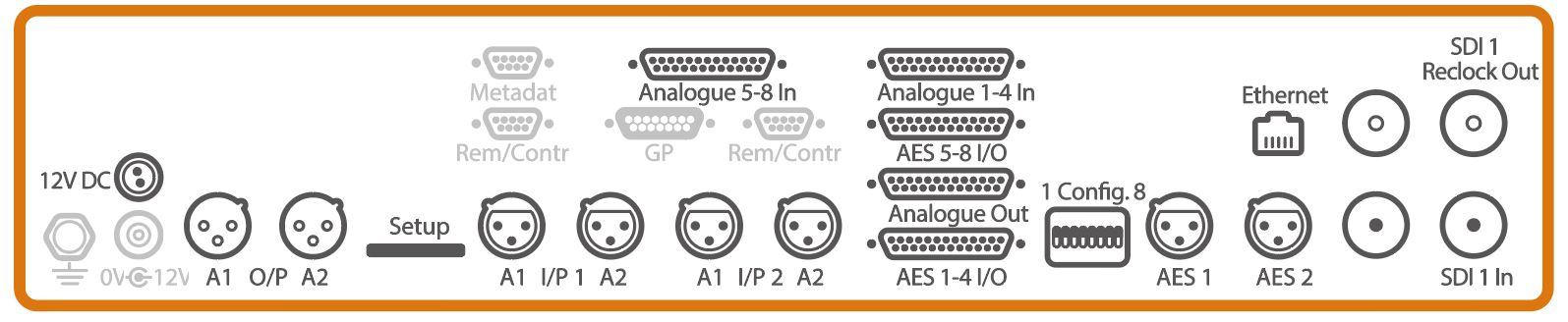

  • Audio Inputs: 16 channels from embedded HD/SDI, AES (8 Pairs/16 Channel) Inputs– 110Ohm Balanced or 75 Ohm unbalanced via optional CAB-D25-BNC cable, • 8 Balanced Analog Stereo Inputs
  • Audio Outputs: Fixed or variable analog stereo outputs (mixer 1 and 2), Fixed or variable AES stereo outputs (mixer 1 and 2)
  • 2 x SDI switchable AES, Analogue
