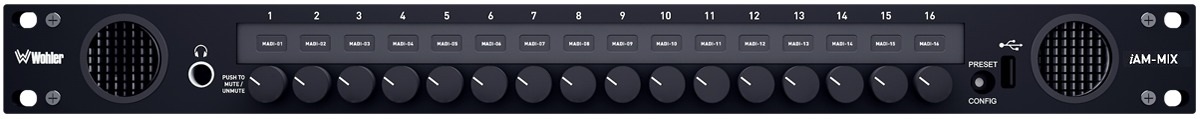

Wohler iAM-MIX16

Opis produktu

Flexible. Adaptable. Future Proof.

Specifically designed for fast-paced OB, studio and live-to-air production environments, iAM-MIX provides intuitive audio signal monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM Choose from either 8 or 16 level controls, both with an independent master level control and instant mute capability and push-for-solo capability. Individual OLED display indicators show status, presence metering and channel name – which can be manually edited or automatically read from a network connected router. Multiple units on the same network can be controlled via a browser-based user interface that supports fast configuration with role-based authentication to protect critical setups.  In short, iAM-MIX is the perfect solution for any application that requires a simple, compact solution for monitoring a range of audio signals.

FEATURES & BENEFITS:

  • Fast selection and summing of up to 8 audio channels, allowing quick muting and hold-for-solo
  • Master volume control that also provides a master mute/unmute
  • Channel names can be displayed for each input or pulled from a router
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
  • Store and retrieve presets up to 64 presets (16 accessible on front panel)
  • Software upgradeable via USB or network, upgrade multiple units at once
  • APIs included for remote control

3G/HD/SD-SDI Input SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
3G/HD/SD-SDI Output SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
AES3 Input OPT-AES (829080): Enables decoding and monitoring of 4 AES inputs on BNC
AES3 Output 1 AES output pair on BNC of mix to speakers
Analog Input OPT-ANALOG (829093): 8 Analog Channels on DB-25 - INCLUDED AS STANDARD
Analog Output 2 on XLR of mix to speakers
MADI Input Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI Output Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
Fiber Input OPT-RAVENNA (829079): Enables decoding and monitoring of Ravenna input streams.
AES67 Input Option: OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 Compliant Dante input streams.
Dante Input OPT-DANTE (829078): Enables decoding and monitoring of Dante input streams.
SMPTE 2022 Input SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key

AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise Better than -68 dB below full output
Peak Acoustic Output @ 2 feet 90 dB SPL @ 2 feet
Power Output RMS Each Side: 12W Continuous/24W Peak
