Audio monitoring

Wohler iAM-AUDIO-1

Opis produktu

Flexible. Adaptable. Future Proof. iAM-AUDIO is designed to be easy to operate, yet powerful enough to provide high quality, intuitive monitoring of multiple signal types within a compact form factor.  Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM. High-quality touch screen panels allow for elegant and intuitive control, with simple to navigate menus.  Physical front panel controls provide access to main and auxiliary volume controls to supplement touch controls, balance control and a front mounting USB port for software updates. iAM-AUDIO can be software upgraded to support new and emerging technologies and is the perfect solution for any application that requires a compact unit for monitoring an evolving range of professional signals All iAM Series monitors are built with an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

FEATURES & BENEFITS:

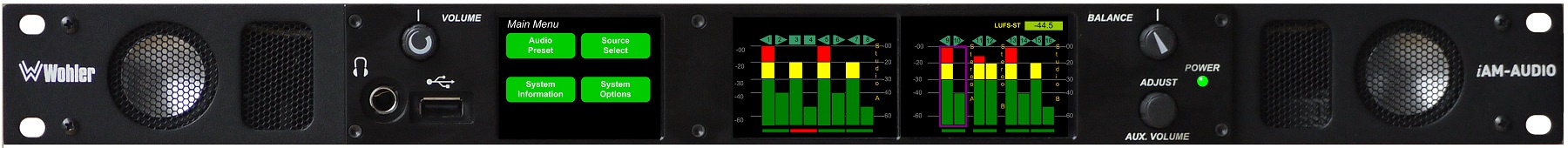

  • Touch screen front panel for easy, intuitive control
  • Monitor up to 16 channels of audio from multiple sources
  • Built-in speakers, headphone jack, USB and Ethernet ports
  • A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Store and retrieve presets via USB or remote software control
  • Software upgradeable via USB or network, upgrade multiple units at once
  • APIs included for remote control

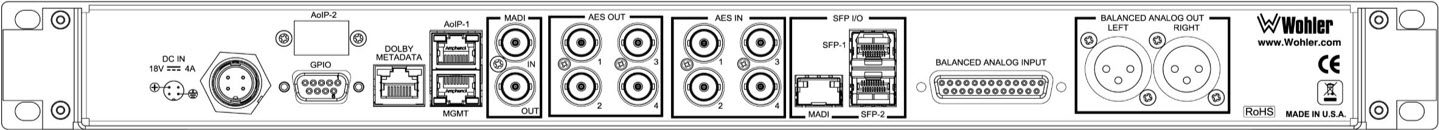

SIGNAL I/O

3G/HD/SD-SDI Input SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
3G/HD/SD-SDI Output SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
AES3 Input OPT-AES (829080): Enables decoding and monitoring of 4 AES inputs on BNC
AES3 Output 1 AES output pair on BNC of mix to speakers
Analog Input OPT-ANALOG (829093): 8 Analog Channels on DB-25 - INCLUDED AS STANDARD
Analog Output 2 on XLR of mix to speakers
Dolby AC-3 Input OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby D Input OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby DD+ Input OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
Dolby E Input OPT-DOLBY (829077): Enables decoding and monitoring of Dolby D, DD+, and E Streams
MADI Input Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
MADI Output Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
Fiber Input SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
AES67 Input OPT-RAVENNA (829079) or OPT-DANTE (829078) Enables decoding and monitoring of AES67 compliant input streams.
Dante Input OPT-DANTE (829078): Enables decoding and monitoring of Dante input streams.
Ravenna Input OPT-RAVENNA (829079): Enables decoding and monitoring of Ravenna input streams.
SMPTE 2022 Input SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key


AUDIO SPECIFICATION

AES Input Sampling Rate 48 kHZ
Analog Input Impedance 40k Ohms balanced
Frequency Response 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
Hum and Noise Better than -68 dB below full output
Meter Dynamics Simultaneous VU & PPM
Meter Scale Simultaneous VU & PPM
Peak Acoustic Output @ 2 feet 98 dB SPL @ 2ft
Power Output RMS Each Side: 12W Continuous/24W Peak


VIDEO SPECIFICATION

Diagonal Display Size 2.4" (60 mm)
Display Resolution (HxV) 320Hx240V
Display Type LCD Touchscreen
Number of screens 3 Graphics

Processing Options:

  • OPT-DOLBY: 829077: Enable monitoring of Dolby® D, DD+, & E streams. Hardware card with software activation key.
  • OPT-DANTE: 829078: Enable monitoring of up to 64ch Dante™ Input. Hardware card with software activation key.
  • OPT-RAVENNA: 829079: Enable monitoring of up to 256ch Ravenna™ / AES67 Input. Hardware card with software activation key.

I/O Options:

  • SFP-SDI (829089) 3G/HD/SD-SDI single receiver w/active loopback, HD-BNC Connectors. SFP module with software activation key
  • SFP-SDI-Fiber (829084) 3G/HD/SD-SDI/ASI SFP optical input; LC (fiber) Connectors; Single-Mode Receiver, Medium Haul, Non-MSA, no output; with software activation key
  • SFP-2110 (829086) SMPTE 2110 receiver; Multi-Mode 850 NM, LC (fiber) Connectors. SFP module with software activation key
  • SFP-2022-6 (829088) SMPTE 2022-6 receiver; Multi-Mode 850 NM, LC (fiber) Connectors. SFP module with software activation key
  • SFP-Madi-MM-Fiber (829081) MADI optical fiber transceiver; Multi-Mode, LC (fiber) Connectors. SFP module with software activation key.
  • SFP-Madi-SM-Fiber (829082) MADI optical fiber transceiver; Single-Mode, LC (fiber) Connectors. SFP module with software activation key.
  • OPT-MADI (829092) Enable monitoring of 1 x MADI64 input via BNC with 1 x looped output. Software activation key.
  • OPT-AES (829080) Enable monitoring of AES3 Input Pairs. Software activation key.
  • OPT-ANLG (829093) Enable monitoring of 8 Analog channels on DB-25. Software activation key. Included as standard with all iAM-MIX & iAM-AUDIO variants
