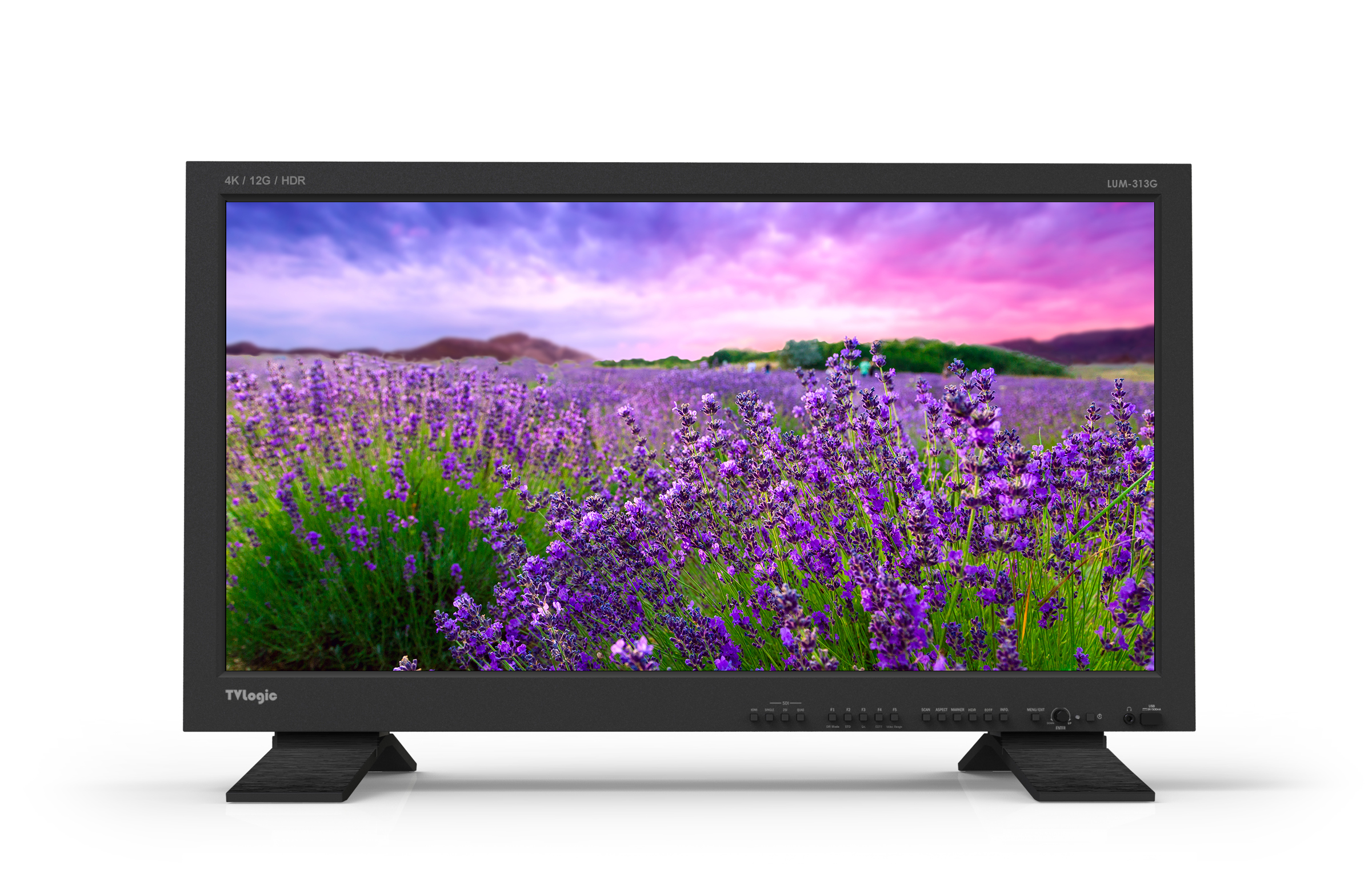

TVLogic LUM-313G

31.1” True 4K Monitor with 12G-SDI&HDMI2.0

Opis produktu

The LUM-313G is a 31.1" native 4K resolution(4096×2160) monitor with maximum luminance of 350nit, contrast ratio of 1500:1, wide color gamut and wide viewing angle. Equipped with 4 BNCs (2×12G-SDI + 2×3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-313G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3. More camera-specific HDR logs and gamuts will be supported by firmware update.

Display Spec

  •  Size        31.1"
  •  Resolution          4096 X 2160 (17:9)
  •  Pixe Pitch            0.1704mm
  •  Color Depth       1.07B
  •  Viewing Angle  178°(H) / 178°(V)
  •  Luminance         350cd/m2
  •  Contrast Ratio  1,500:1
  •  Display Area      698(H) x 368(V) mm

Input

  •  4 X BNC               12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
  •  1 X HDMI            HDMI Input

Output

  •  4 X BNC               HD SDI A/B/C/D Channel Output

Audio

  •  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

  • Blue Only,  H/V Delay,  Marker,  Mono,  User Aspect,  Various Scan Modes,  Waveform/Vector,  SingleMode

Calibration

  •  TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

  •  REMOTE               TVLogic’s specification
  •  USB        Firmware update by USB cable                 Firmware update by USB memory stick
  •  Conversion          SDI-to-SDI
