Monitory

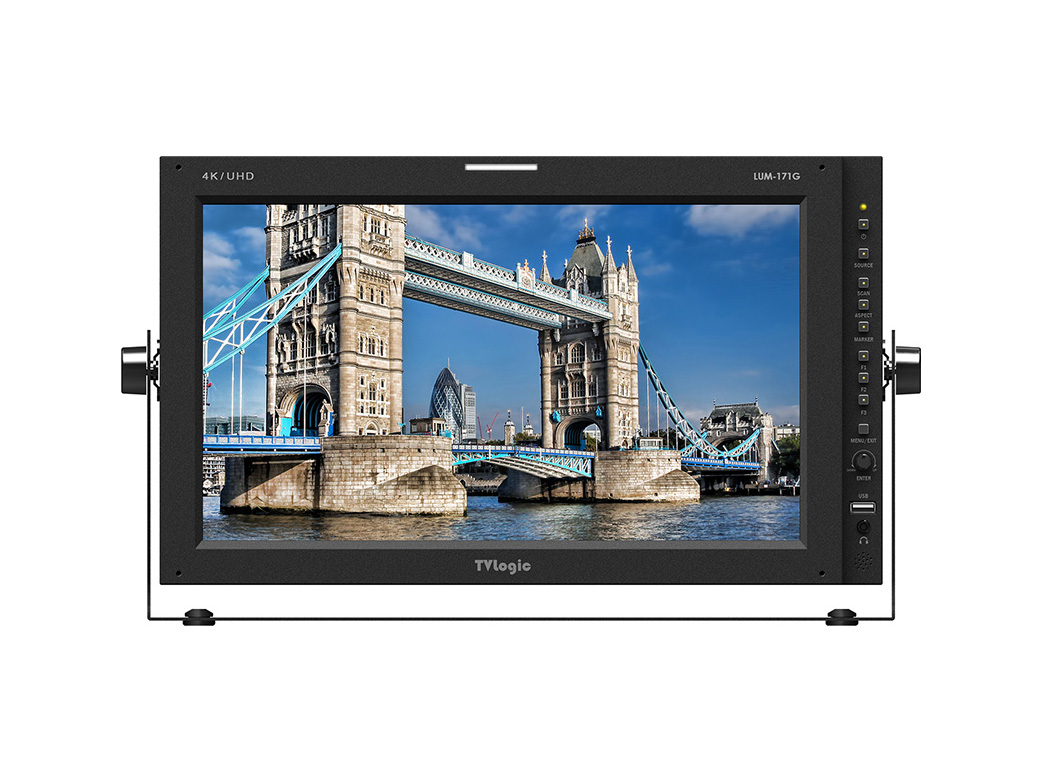

TVLogic LUM-171G

16.5” 4K Input-Ready Monitor

Opis produktu

The new LUM-171G monitor supports 3G/6G/12G-SDI input - 2×3G-SDI & 2×12G-SDI. The LUM-171G combines a native 1920 x 1080 IPS LCD with SD/HD/UHD/4K input support for the most versatile monitoring and field production applications.

Display Spec

  •  Size        16.5"
  •  Resolution          1920 X 1080 (16 : 9)
  •  Pixe Pitch            0.1905mm
  •  Color Depth       1.07B
  •  Viewing Angle  178°(H) / 178°(V)
  •  Luminance         450cd/m2
  •  Contrast Ratio  1400:1
  •  Display Area      366(H) x 206(V) mm

Input

  •  4 X BNC               12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
  •  1 X HDMI            HDMI Input (HDMI 2.0a)

Output

  •  4 X BNC               12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out)

Audio

  •  Audio Out           Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

  • Blue Only,  H/V Delay,  Marker,  Mono,  SingleMode,  Camera Lut.

Calibration

  •  TVLogic Color Calibration Utility

Other Functions

  •  REMOTE               TVLogic’s specification
  •  USB        AUTO Calibration             Firmware update by USB cable                 Firmware update by USB memory stick
  •  Ethernet
  •  Conversion          SDI-to-SDI
