Opis produktu
16-bit full digital processing and 3G transmission for highest picture quality.
- Employs high performance progressive sensors
- Incorporates newly developed FPGA for video DSP
- Supports 60p/50p and 4:4:4 3G HDTV formats
- Compact docking style camera body
- Full compatibility with a wide range of HDK accessories
Next Generation High Speed Video Processor, AXII
Ikegami has developed a new processing engine, AXII, for our next generation HD, 4K, and 8K cameras. This ASIC can perform high speed processing of super high resolution video signals in various formats and frame rates. The HDK-97A utilizes this new processor, making it possible to deliver high quality, high reliability and low power consumption. The camera is also capable of 16-axis color correction and an improved focus assist function.
S/N ratio of 62dB (Typical)
Taking full advantage of its excellent sensors and video circuits, the HDK-97A offers superb high quality, natural looking pictures with 1000 TV lines of horizontal resolution, F10 sensitivity, and 62dB S/N ratio in HDTV (1080i59.94).
Newly developed 2.3 Mega pixel progressive sensors
New 2/3-inch 2.3 Mega pixel 1080 progressive CCDs are employed to support not only the usual 1080i 59.94/50Hz 4:2:2, 720p 59.94/50Hz 4:2:2 1.5G formats, but also 3G formats such as 1080p 59.94/50Hz 4:2:2 and 1080i 59.94/50Hz 4:4:4. Furthermore, 1080i(119.88/100Hz), 1080p(29.97/25Hz) are available as an option. The HDK-97AP adds support for the 1080p(23.98Hz) format.
Video processing technology to maximize the benefit of 16-bits
This camera is designed from the start based on 16-bit A/D and matching 16-bit DSP to maximize the benefits of high bit quantization. Especially for the dark areas of the picture, the higher gradation for gamma and other circuits improves the reproduction, providing for more natural color in the shadow areas of the picture.
HD SDI Trunk (Option)
When the camera is operating in a conventional 1.5G format, a second 1.5G video from an external source can be transmitted to the CCU as a video trunk channel. For POV or 3D applications this will reduce the cables which need to be run.

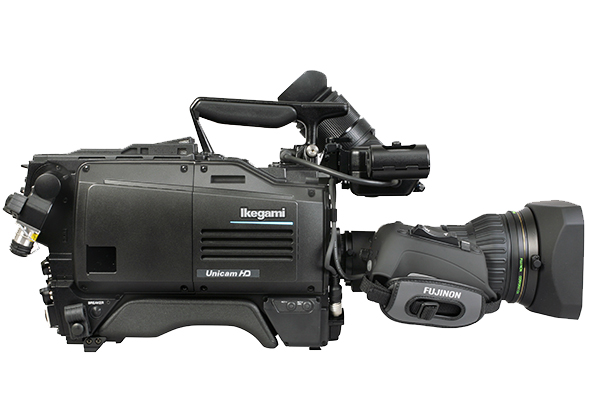

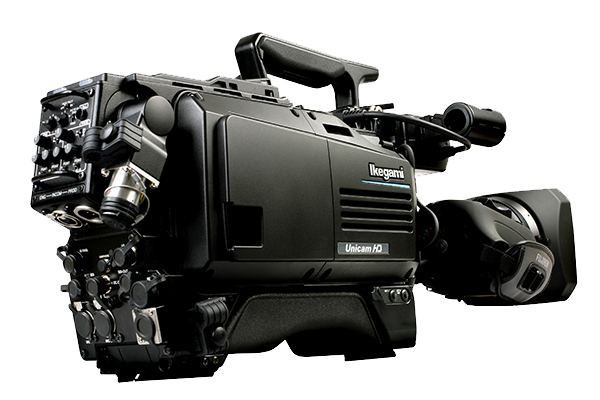

Docking style camera body
With a docking style camera body, either an FA (Fiber Adaptor) or TA (Triax Adaptor) can be mounted depending on the use.
Camera Operator Assist Functions
There are two types of camera operator assist functions incorporated in the HDK-97A/AP camera head. The viewfinder detail(VF DTL) function allows the camera operator to increase the detail edges to the viewfinder video for easy-focusing. In addition, the Quick EZ Focus (Focus Assist) function is newly incorporated useful tool, providing very distinct enhancement to the viewfinder edge signal to enable the camera operator to make critical focus adjustment.
Digital Extender
The HDK-97A/AP features the Digital Extender function that instantly goes up to 4x to enlarge the image at the center of shot without any loss in image sensitivity.
Simulcast
Using a down converter and up converter incorporated in the CCU as standard, both HDTV and SDTV signals are provided simultaneously from the CCU. And the CCU offers not only the usual 1080i 59.94/50Hz 4:2:2 1.5G signal outputs, but also 3G outputs like 1080p 59.94/50Hz 4:2:2 and 1080i 59.94/50Hz 4:4:4. (Option)
