Angenieux

Optimo Anamorphic 30‑72 A2S

Opis produktu

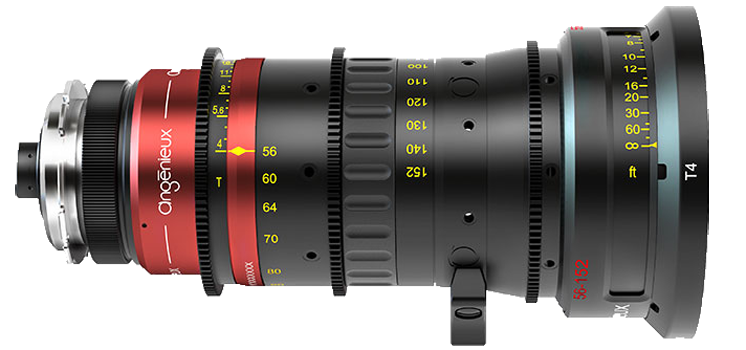

OPTIMO ANAMORPHIC: ELEVATING ANAMORPHIC PRODUCTION TO A NEW LEVEL The two short anamorphic zooms, Optimo 56-152 A2S and Optimo Anamorphic 30-72 A2S, are the lightest and most compact anamorphic zoom lenses ever made. The Angénieux A2S zoom lenses blend perfectly not only with the complete range of Angénieux lenses, but also with most spherical and anamorphic prime lenses of the market. The cylindrical optical elements are integrated in the rear part of the lens. Their unique mount design allows a quick swap between PL and PV mounts and the focus scale ring is easily interchangeable from feet to meters. They are compatible with the Angenieux Servo Unit

Specifications

ZOOM RATIO 2.4X APERTURE f/3.6 – T4 WEIGHT (APPROX.) 5.3 lbs – 2.4 kg LENGTH 227 mm FRONT DIAMETER 114 mm MOD 2 ft 2 in – 0.65 m IMAGE COVERAGE 4 perf. scope+ : 28.8 mm diagonal INTERNAL FOCUS Yes MAIN FEATURES
  • 2:1 horizontal squeeze achieved by cilinder optics in the rear part of the lens
  • Perfect homogeneity of color, contrast, resolution and low distortion typical of the Optimo series
  • Constant T4 across zoom range
  • Minimal breathing suitable for rack focusing
  • Extreme close focus at 2″2′ or 0.65m
  • Very low distortion on all focal lengths and at all focus distances
  • The lightest and most compact anamorphic zoom in the market
  • Precise and ergonomic focus ring with scale rotation of 320 degrees & over 50 focus marks. Interchangeable focus scale ring from feet to meters
  • 114mm diameter front ring for standard accessories
  • Precised and rugged travelling of the zoom and focus groups using Angénieux classic rod mechanical guiding system
  • Suited for extreme production environments (temperature range from -20°C to +45°C)
  • Compatible with the 2x extender : 60-144mm T8
  • Special Uncoated Front Element – standalone accessory – for a distinctive anamorphic look (softer image contrast and additional flares)
  • Available in PL mount. Easily interchangeable with PV Panavision mount (& EF on demand)
  • Can be used with the ASU – Angénieux Servo Unit
Field of view for 35 mm 4 perf. (21.95×18.6 mm, 28.8mm diagonal)
Focal Length 30 mm 72 mm
Horizontal angular field of view 72.5° 34°
Vertical angular field of view 34.4° 14.7°
